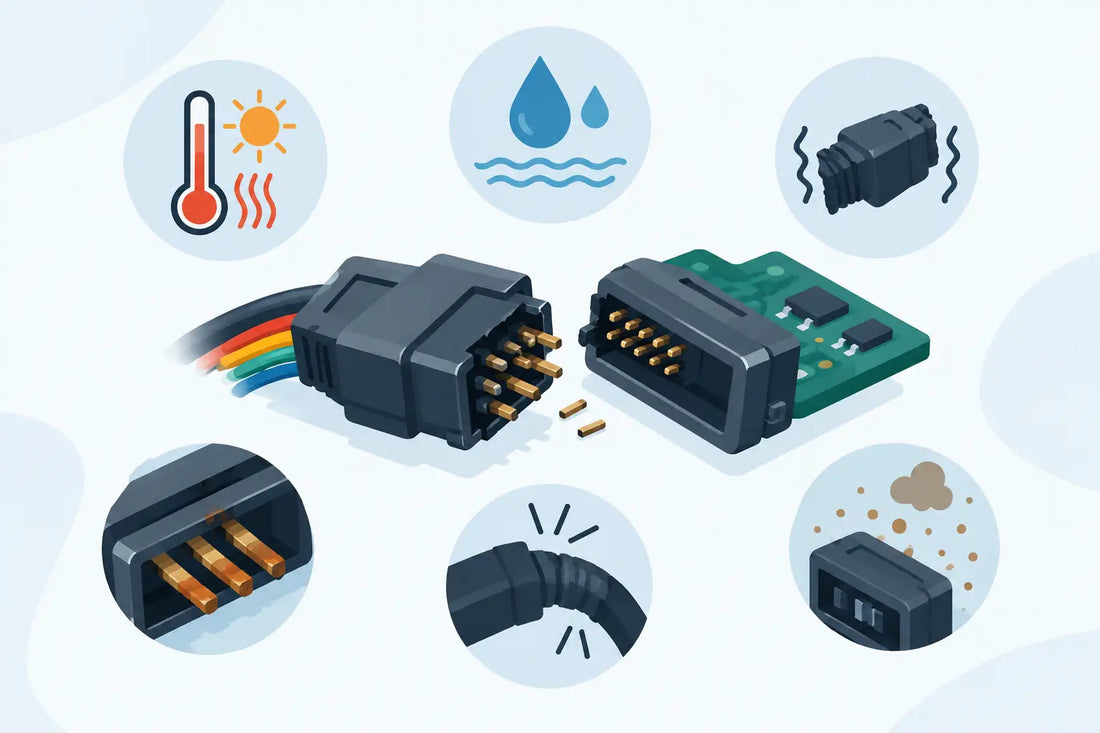

What Causes Connector Failure in Electronics?

A connector that passes continuity checks on the bench can still become the weakest part of a finished product. In compact AI hardware, robotics, imaging systems and industrial electronics, the question is not simply what causes connector failure, but which combined electrical, mechanical and environmental loads will cause it first.

Connector failures rarely have a single root cause. A marginal contact force may be harmless in a clean, static enclosure, yet fail rapidly once vibration, humidity and repeated movement are introduced. Reliable interconnect design therefore starts with the real operating environment, not only the connector’s headline current or pin-count rating.

What causes connector failure in real applications?

At its most basic, connector failure occurs when the intended electrical or mechanical connection can no longer be maintained. This may appear as increased contact resistance, intermittent signals, data errors, localised heating, reduced insulation resistance, broken conductors or complete separation.

The failure mode matters. A power connector with rising resistance can generate heat and accelerate damage. A high-speed signal connector may still show continuity but suffer enough impedance discontinuity, noise or intermittent contact to corrupt data. For camera modules, sensors and flex-mounted displays, a brief interruption can be as disruptive as a permanent open circuit.

Contamination and corrosion at the contact interface

Connector contacts rely on a controlled metal-to-metal interface. Dust, flux residue, oils from handling, moisture and airborne chemicals can interfere with that interface. Even thin contamination layers can increase resistance or create unstable connections in low-voltage, low-current circuits where there is insufficient current to break through surface films.

Humidity is especially challenging when combined with contaminants. Condensation, salt-bearing air and sulphur-containing industrial atmospheres can promote corrosion or fretting products on contact surfaces. Plating selection is therefore not cosmetic. Gold is often selected for low-level signal contacts because of its corrosion resistance, while tin may suit other applications but requires careful assessment of vibration, mating cycles and environment.

Cleaning processes deserve the same attention. Residual cleaning chemistry, poorly controlled no-clean flux residues, or moisture trapped after wash processes can undermine an otherwise sound connector choice. The practical question is whether the assembled product, not just the loose component, remains clean and dry through manufacture and service.

Vibration, shock and fretting corrosion

Vibration is a common cause of intermittent connector faults in mobile, industrial and robotic equipment. Small relative movements between mated contacts can wear plating and form oxidised debris. This process, known as fretting corrosion, raises contact resistance and can produce faults that are difficult to reproduce outside the installed system.

The risk depends on vibration frequency, amplitude, connector orientation, contact normal force, cable mass and strain relief. A connector that performs well on a lightweight internal harness may struggle when a heavier cable repeatedly transmits motion into its termination.

For moving assemblies, flex circuits can reduce the number of separate wire terminations and simplify routing. However, the flex itself must be designed around bend radius, dynamic cycle life, support and transition control. Replacing a wire harness with a flexible circuit does not remove mechanical risk if the connector interface remains unsupported or is positioned at the point of maximum movement.

Poor mating and incomplete engagement

A surprising number of failures begin during assembly. Misalignment, partial insertion, a damaged latch, uneven insertion force or an incorrectly seated flexible printed circuit can leave contacts only partly engaged. The unit may function during initial test, then fail after thermal cycling or transport.

Zero insertion force and low insertion force connectors require particular discipline. The actuator must be fully opened before the flex is inserted, the correct stiffener orientation must be observed, and the actuator must be fully closed. A flex tail inserted at an angle can crease conductors, damage contact plating or create uneven contact pressure across the connection.

Keying, polarisation, clear assembly instructions and visual inspection features reduce this risk. Where process volume or product criticality justifies it, fixtures and automated optical inspection can provide more repeatable confirmation than manual judgement alone.

Heat, current and thermal cycling

Excess temperature affects connectors directly and indirectly. High ambient temperature can soften housings, reduce contact force over time and accelerate oxidation. Current flowing through a high-resistance contact creates local heating, which can further increase resistance in a damaging feedback loop.

The stated current rating is not a universal operating guarantee. It depends on conductor size, pin population, ambient temperature, airflow, enclosure conditions and neighbouring heat sources. A connector carrying current on every position in a tightly packed enclosure behaves differently from a single energised contact on an open test fixture.

Thermal cycling introduces another failure mechanism. Different materials expand and contract at different rates. Repeated cycling can stress solder joints, crimp terminations, flex tails and connector housings. In a fine-pitch PCB assembly, pad design, copper balance, solder profile and mechanical support all influence whether the connector remains stable over the required life.

Incorrect connector or cable selection

Many connector issues are specification mismatches rather than defects. The selected part may have the correct pitch and number of positions, yet be unsuitable for the duty cycle, voltage, insertion life, flex thickness or required signal integrity.

For example, a standard flat-flex connector might be appropriate for a static internal display connection but not for a dynamic robotic joint. A low-cost board-to-board connector may fit the space envelope but lack the retention needed for shock loading. Similarly, a cable rated for a nominal voltage may not provide sufficient creepage, clearance or insulation margin for the actual safety requirement.

High-speed interfaces demand further scrutiny. Connector geometry, return paths, shielding, pair spacing and transition design affect impedance and insertion loss. A connection can be mechanically secure and electrically continuous while still degrading a high-bandwidth data channel. Design validation should therefore include signal-integrity assessment where interface speed makes it necessary.

Design decisions that prevent connector failure

Failure prevention is most effective when it begins before the enclosure, PCB and cable route are fixed. The connector must be selected as part of the interconnect system, including the mating component, cable or flex, PCB footprint, housing and assembly method.

Start with a realistic operating profile. Define temperature range, humidity, contaminants, shock and vibration exposure, expected mating cycles, movement, current loading, data rates and service life. If a product will be handled by users or technicians, account for mis-mating and repeated access. If it will operate in a sealed enclosure, examine internal heat and condensation paths rather than assuming sealing removes environmental risk.

Mechanical retention should be designed deliberately. Latches, locks, backshells, cable clamps and strain relief features all protect the electrical interface from external load. Where space permits, avoid routing a cable so that its natural spring force continuously pulls against the connector. Provide service loops and support close enough to the connector to control movement without creating a sharp bend.

For flexible circuits, specify the details that affect both assembly and lifetime: conductor construction, coverlay, stiffener material and position, tail dimensions, exposed contact finish, bend regions and reinforcement. Tight tolerances at the connector tail are often more valuable than nominal flexibility elsewhere, because insertion geometry and contact alignment depend on them.

PCB layout also plays a direct role. Use the manufacturer’s recommended footprint, keep-out zones and soldering process limits. Anchor larger or frequently operated connectors where appropriate, and assess whether repeated insertion loads could flex the board or stress solder joints. For sensitive high-speed or analogue circuits, maintain controlled routing and return-path continuity through the connector transition.

Manufacturing controls matter as much as component choice

A technically suitable connector can still fail through inconsistent assembly. Incoming inspection should confirm part identity, plating condition, dimensions and packaging integrity. During production, control handling to prevent oils and debris reaching contact areas, and protect connectors from solder splash, cleaning residue and excessive rework heat.

Crimped contacts need validated tooling, correct wire-strip dimensions and pull-force testing. Soldered connections need a profile that achieves reliable joints without overheating housings or wicking solder into flexible conductors. Flex assemblies need controlled insertion depth and actuator closure, especially at fine pitch.

Testing should reflect the likely failure mode. Basic continuity testing is useful, but it may not reveal intermittent contact under vibration, rising resistance under load, or signal degradation at operating frequency. Depending on the application, meaningful validation can include thermal cycling, vibration testing, humidity exposure, mating-cycle testing, contact-resistance measurement and high-speed channel testing.

Diagnosing a failed connector without guessing

When a field failure occurs, avoid replacing the connector and assuming the problem is solved. Inspect the contact area under magnification for wear, corrosion, plating damage, foreign material, bent contacts and incomplete engagement. Check the cable route and strain-relief points for evidence of repeated loading.

Measure contact resistance at an appropriate low current and compare suspect positions with known-good positions. Examine whether the issue changes with temperature, movement or connector pressure. Intermittent faults that appear only when a cable is moved often indicate strain, fretting or incomplete mating, while failures that worsen after heat exposure may point to current loading, oxidation or solder-joint stress.

A connector is not an isolated purchased part. It is a precision interface shaped by material choice, mechanical support, PCB design, assembly process and the environment around it. Treating those elements as one engineered system gives next-generation electronics the reliability their performance demands.
