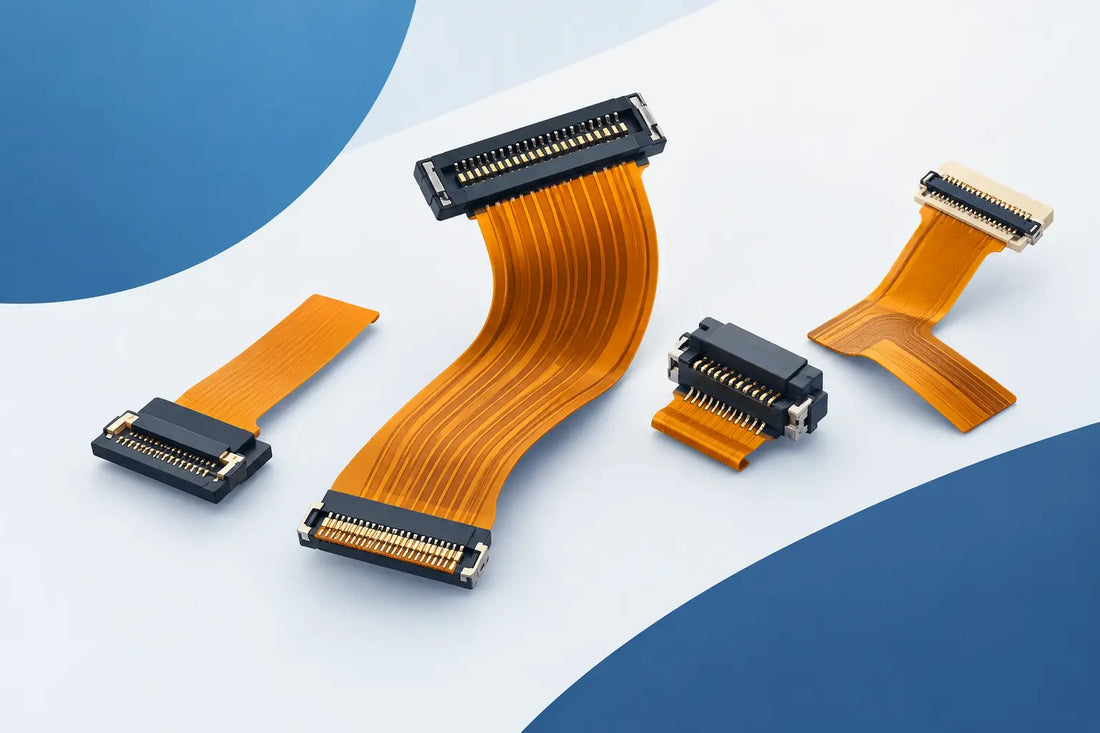

Best Flex Cable Connectors for Reliable Designs

A flex assembly can be specified perfectly and still fail at its termination. The best flex cable connectors are not simply those with the highest pin count or smallest pitch. They are the connectors that preserve signal integrity, tolerate the required movement, fit the mechanical envelope and remain reliable through assembly, test and service life.

For engineering teams developing compact AI hardware, robotics, imaging systems and industrial electronics, connector selection is therefore a system decision. The cable, connector, PCB footprint, enclosure and assembly process must be considered together. A low-profile connector may save valuable millimetres, but not if it creates an inaccessible mating operation or a fragile interface in the finished product.

What Defines the Best Flex Cable Connectors?

The right connector depends on the application, but four requirements consistently determine performance: electrical compatibility, mechanical retention, environmental suitability and manufacturing repeatability. A connector that meets only the first requirement can still become the weak point of an otherwise capable design.

Pitch is usually the starting point. Fine-pitch FFC and FPC connectors support high contact density in restricted spaces, which is useful for cameras, displays, sensors and compact processing modules. However, tighter pitch increases demands on cable dimensional control, PCB land pattern accuracy and handling during assembly. A wider-pitch part may be the more reliable production choice where space permits.

Contact orientation matters just as much. Top-contact and bottom-contact connectors must match the exposed conductor orientation of the flex cable. This sounds elementary, yet orientation errors remain a common source of prototype delays, particularly where shaped flex circuits route around housings and turn through multiple planes. Specify the cable contact side, insertion direction and connector mounting side on the drawing rather than relying on shorthand descriptions.

The connector must also suit the duty cycle. A static internal interconnect in a sealed enclosure has very different needs from a cable that is repeatedly opened during maintenance, or one that moves with a robotic joint. Flex is not automatically a dynamic solution. If the assembly will bend in service, define bend radius, bend location, cycle count and strain-relief strategy before choosing the interface.

Connector Families and Where They Fit

Zero insertion force, or ZIF, connectors are often selected for fine-pitch FFC and FPC assemblies. Their locking actuator allows the cable to be inserted with minimal force, then secured by a flip-lock or slide-lock mechanism. They are well suited to delicate conductors and high-density layouts, provided the actuator is accessible once the PCB is installed.

Flip-lock types are compact and widely used, but their hinged actuators can be vulnerable to incorrect operation in manual assembly. Slide-lock versions can offer a more direct retention action and may be preferable where operators need clearer confirmation that the cable is fully latched. The best choice depends on available access, expected rework and the assembly method, not only the catalogue dimensions.

Non-ZIF connectors use contact spring force to retain the cable. They can reduce component complexity and suit straightforward, low-cycle applications, but insertion force rises with circuit count and can stress thin flex materials. They require careful consideration where a cable must be installed frequently or where a large number of contacts is involved.

Board-to-board mezzanine connectors are another option when the flexible section terminates in a rigid-flex construction or a small daughterboard. They can provide excellent density and controlled geometry for high-speed interfaces. Their limitation is mechanical tolerance: stacked boards must be aligned accurately, and the assembly must not impose side load or twist on the mated pair.

For harsher environments, wire-to-board or latching harness connectors may be more appropriate than fine-pitch FFC interfaces. They occupy more volume, but often provide stronger retention, more substantial terminals and better field-service handling. In equipment subject to vibration, shock or routine disconnection, this trade-off can be worthwhile.

Start With the Electrical Interface

Connector selection should begin with the signals being carried. Power, low-speed control, analogue sensor outputs and high-speed differential pairs place different demands on the interconnect. Treating every conductor as a generic connection can create noise, voltage drop or timing problems that only become visible after integration.

For power circuits, assess current per contact, total current, contact resistance and temperature rise. Parallel contacts can share load, but this needs deliberate pin assignment and validation. The flex conductor width and copper thickness must also support the current without excessive heating or voltage loss.

High-speed signals require closer attention to impedance and return paths. USB, MIPI, LVDS, Ethernet-derived links and other differential interfaces are sensitive to discontinuities introduced by cable transitions and connector geometry. Maintain pair spacing, provide a defined ground reference where practical and avoid unnecessary stubs. A connector marketed for a suitable pitch is not necessarily suitable for the intended data rate.

For sensitive analogue and imaging applications, grounding strategy can be decisive. Separating noisy power lines from low-level signals, assigning ground contacts alongside critical lines and using shielding where necessary can improve immunity. The cable stack-up, connector pinout and PCB layout should be reviewed as one signal path.

Mechanical Details That Prevent Field Failures

The retention method should reflect real loading, not ideal laboratory conditions. Cables can experience pull, vibration, torsion and accidental handling during production or servicing. A positive lock is valuable where the cable could be disturbed, while a low-profile friction-fit connection may be adequate inside a fully constrained consumer enclosure.

Check the specified cable thickness carefully. FFC and FPC connectors are designed around a defined thickness range, and a mismatch can reduce contact force or prevent secure latching. Stiffeners are frequently required at the termination area to achieve the correct insertion thickness and to stop the flex from creasing at the connector edge.

Bend management deserves equal attention. Do not place a dynamic bend immediately at the connector exit, and do not allow the cable to fold sharply against the latch. A controlled service loop, appropriate bend radius and local strain relief protect both the copper traces and the plated contact area. Where space is restricted, a shaped flex design can route the assembly through the enclosure without forcing an unsuitable bend.

Environmental exposure changes the decision. Humidity, contamination, temperature cycling and vibration can all affect contact reliability. Consider housing material, contact plating, operating temperature range and any sealing requirements. Gold plating is often beneficial for low-level signals and repeated mating, but thickness, base material and the wider operating environment all matter.

Design for Assembly, Inspection and Rework

A connector can be electrically and mechanically correct yet expensive to build if the operator cannot see the latch or reach the cable. Include the insertion direction and minimum tool clearance in the mechanical review. If a cover, heatsink or battery pack blocks access, the design may require a different connector orientation or a pre-assembled submodule.

Automated production introduces further constraints. Pick-and-place compatibility, reel packaging, solder joint inspection and reflow profile must align with the planned process. For low-volume builds, hand assembly may be acceptable; for production, a connector with a fragile actuator or ambiguous latch position can create unnecessary variation.

Specify clear visual indicators wherever possible. A marked cable insertion line, distinct lock position or keyed orientation reduces operator error. Documentation should show the cable part number, conductor orientation, stiffener dimensions and approved mating procedure. These details are especially valuable when a product moves from prototype engineering to contract manufacture.

A Practical Selection Process

Rather than selecting from connector catalogues first, define the interface requirements in a short engineering checklist. Record circuit count, pitch limit, cable thickness, contact orientation, current, data rate, mating cycles, working environment, available height and insertion access. Add the expected cable movement and retention load. This quickly eliminates parts that appear suitable but cannot meet the complete requirement.

Next, evaluate the connector with the intended flex construction. Sample assemblies should be tested in the actual enclosure, not only on a bench. Check insertion force, latch operation, cable routing, clearance to surrounding components and the effect of repeated mating. For critical systems, include vibration, temperature cycling and electrical continuity testing in the validation plan.

Where a standard flex product meets the interface need, it can shorten development time. Where the geometry, pinout, impedance control or environmental demands are specific to the product, a custom flex and PCB approach gives more control over the entire interconnect. Cocom supports both routes, allowing teams to begin with proven flex formats or engineer a purpose-built assembly around the final mechanical and electrical constraints.

The strongest connector choice is usually the one that makes the finished product easier to manufacture and harder to misuse. Specify the interface early, test it in its real mechanical setting and allow the cable, connector and PCB to perform as one engineered system.
