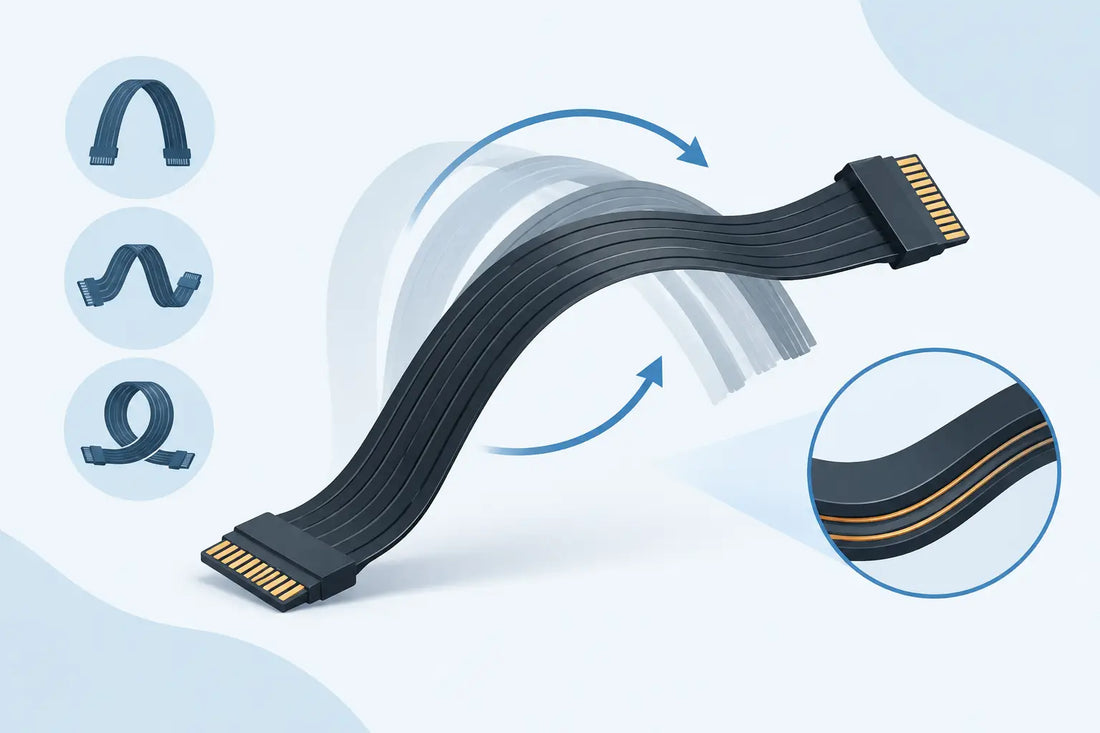

Can Flex Cables Bend Repeatedly? Design Limits

A camera module that pans thousands of times per day, a robotic joint or a hinged diagnostic device all place a different demand on an interconnect than a one-time assembly fold. Can flex cables bend repeatedly? Yes, but only when the cable, its routing and its operating environment are engineered for dynamic flexing rather than treated as a standard connection.

A flexible printed circuit can deliver exceptional reliability in a moving system. It can also fail early if a static-flex design is placed into a repetitive-motion application. The distinction matters because conductor fatigue, material stress and termination loading build over time, often long before a visible crack appears.

Can Flex Cables Bend Repeatedly in Dynamic Applications?

Repeated bending is possible, but cycle life is not a fixed property of every flex cable. It is the result of several connected design decisions: conductor type and thickness, dielectric construction, bend radius, layer count, cable length, movement path and the number of cycles expected in service.

A flex cable used only to fold into a compact enclosure may experience one or two bends during assembly. This is often called a static application. A cable travelling with a print head, actuator, display hinge or sensor arm is a dynamic application. In dynamic use, the same section bends continuously, and the copper conductors are exposed to alternating tensile and compressive strain.

The central engineering aim is simple: keep strain in the copper as low and as evenly distributed as practical. That calls for more than selecting a flexible base material. It requires the whole interconnect to be designed around motion.

Why Repeated Bending Causes Flex Cable Failure

Copper work-hardens when repeatedly stressed. With enough cycles, microscopic cracks can form, grow across a conductor and eventually create an open circuit or intermittent signal path. Fine-pitch data lines may show errors before a complete electrical break is detected, while power tracks can develop local heating at a damaged section.

The bend area is not the only point of risk. A cable that is clamped too tightly at either end can transfer movement directly into solder joints, connector contacts or plated through-holes. Abrasion against an enclosure edge, twisting during travel and compression at the tightest part of the bend can all reduce service life.

Temperature adds another variable. Heat can change material behaviour and alter the effects of adhesive, coverlay and copper expansion. In equipment exposed to vibration, humidity, cleaning agents or particulate contamination, a theoretical bend-life figure may not reflect actual operating conditions. This is why dynamic flex should be specified as part of the system, not purchased on bend radius alone.

The Design Choices That Improve Bend Life

Use rolled annealed copper for moving sections

Rolled annealed copper is generally preferred for dynamic flex zones because its grain structure is more suited to repeated bending than electrodeposited copper. The material selection should be confirmed against the intended motion and cycle requirement, especially where the flex carries critical power, high-speed signals or safety-related connections.

Copper thickness also matters. Thinner copper usually tolerates bending better because it reduces strain for a given radius. That benefit must be balanced against current capacity, voltage drop and thermal performance. A power path designed only for flexibility may become electrically inadequate, while an unnecessarily heavy copper layer can shorten fatigue life.

Keep the bend radius generous

A larger bend radius reduces stress in the copper and insulating layers. The precise minimum depends on the construction, but dynamic areas should use a noticeably more conservative radius than one-time installation folds. Engineers should assess the radius in the real mechanism, not only in a flat CAD layout.

A cable may appear to have sufficient room when stationary, then be pulled into a tighter radius at the end of travel. Motion studies, physical mock-ups and tolerance analysis are valuable here. The smallest radius reached during use is the one that governs reliability.

Design the bend zone for movement

Tracks should run perpendicular to the bend axis where possible. This allows conductors to travel through the bend rather than being stretched along it. Avoid abrupt changes in track width, sharp copper corners, vias and pads within the moving region. These features create local stress concentrations that can become crack initiation points.

In multilayer constructions, staggered conductor routing is often preferable to placing tracks directly above one another through a bend zone. Symmetry in the stack-up also helps control curling and uneven mechanical behaviour. If shielding is required, its construction must be considered carefully, as added layers can increase stiffness and change how the cable flexes.

Allow enough free length

A dynamic cable needs a controlled path and sufficient free length to form a gradual curve. A short cable forced between two moving points may bend sharply at a single location on every cycle. A longer, properly guided cable can distribute movement over a broader area.

The ideal arrangement depends on the mechanism. Some systems benefit from a rolling bend where the flex moves through a defined arc; others use a service loop. What should be avoided is uncontrolled buckling, torsion or a cable edge rubbing against a fixed surface. Mechanical guides should support the intended path without pinching the flex.

Static Flex, Dynamic Flex and Torsion Are Not the Same

The word ‘flexible’ can be misleading in procurement specifications. A flexible circuit may be entirely suitable for compact packaging yet not be rated for continuous motion. The requirement should state whether the cable is static, periodically flexed, continuously flexed or exposed to torsion.

Torsion deserves particular attention. Twisting a cable about its length can load conductors and layers differently from a simple bend. If a robotic end effector rotates, for example, the interconnect may need an alternative routing method, a purpose-designed torsion section or a different architecture altogether. Asking a planar flex to absorb uncontrolled twist is rarely a sound long-term strategy.

Cycle count should also be defined realistically. A laboratory prototype that moves 100 times may prove fit and function, but it does not demonstrate performance over millions of cycles. Consider normal use, accelerated use, start-stop events, maintenance modes and credible misuse. The target is not merely survival in an ideal test, but dependable operation throughout the product’s intended service life.

Validate the Cable in Its Actual Mechanism

Material data and design rules provide a strong starting point, but application-level validation is where assumptions are tested. A useful programme replicates the production routing, clamps, connectors, payload, speed, acceleration and environmental conditions as closely as possible.

During cycling, monitor electrical continuity and, where relevant, impedance or signal integrity. Inspect the cable for conductor cracking, coverlay lifting, edge wear and signs of localised stress at terminations. Testing should include the points where the mechanism reverses direction, as these may impose the highest loads.

It is also worth assessing assembly variation. A cable that survives when installed perfectly may fail if a production operator routes it a few millimetres differently or applies a clamp with excessive force. Designing in positional features, adequate clearances and repeatable assembly controls can protect the reliability achieved on the test bench.

When a Custom Flex Design Is the Better Option

Ready-to-order flex cables can be the right solution for straightforward layouts, prototypes and applications with known mechanical constraints. When motion, geometry, signal density or environmental exposure becomes more demanding, a custom design can remove compromises introduced by adapting a standard part.

A tailored flex can place stiffeners only where connector support is needed, leave the dynamic zone free of unnecessary features, tune copper weights by circuit area and shape the outline around the actual travel path. It can also integrate controlled-impedance routing, shielding, branching and defined termination geometry without adding separate interconnects.

For teams developing advanced imaging, AI hardware, robotics or compact industrial equipment, the advantage is not simply a cable that fits. It is an interconnect engineered to support the mechanical and electrical behaviour of the complete system. Cocom combines production capability with custom flex and PCB engineering to help define those requirements before they become field failures.

Repeated bending should never be treated as a generic flex-cable feature. Define the movement first, then build the conductor construction, bend geometry and validation plan around it. That approach turns the flex from a potential wear item into a reliable part of the mechanism.
