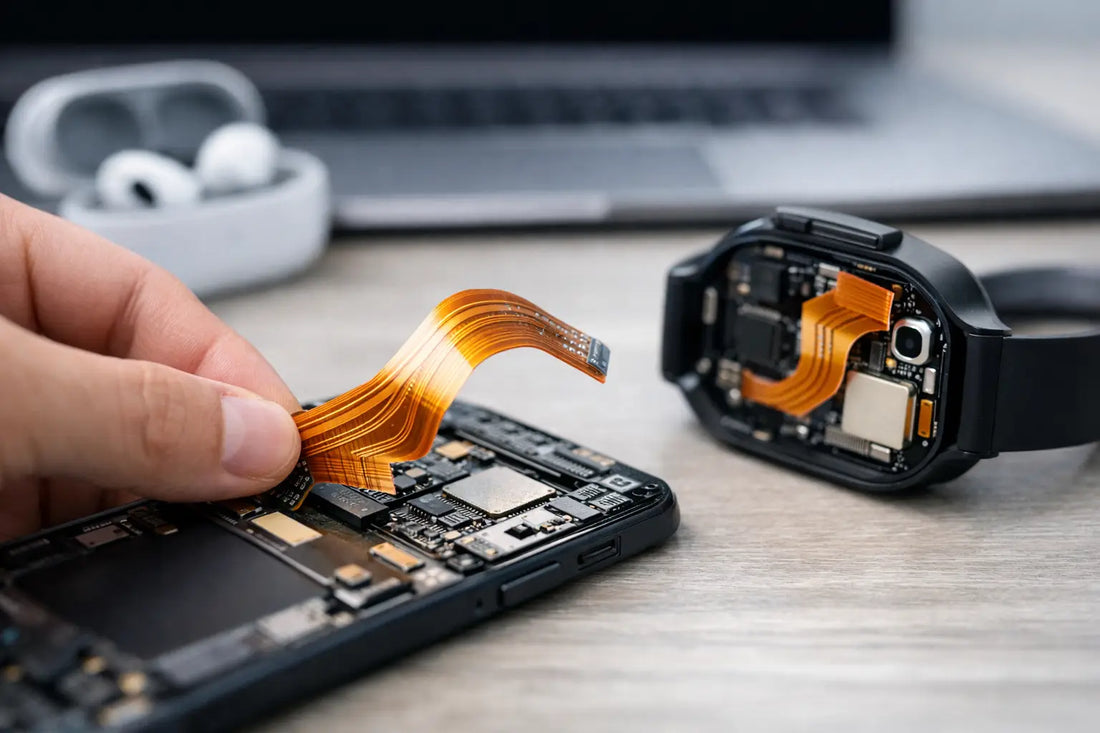

How Flexible Circuits Work in Real Devices

When a camera module has to fold into a tight enclosure, or a robotic assembly needs electrical connections across constant movement, rigid boards quickly reach their limits. That is where understanding how flexible circuits work becomes commercially useful, not just technically interesting. For design teams balancing space, motion, weight and reliability, flex technology often solves several mechanical and electrical problems at once.

Flexible circuits are printed conductors built on bendable insulating films rather than rigid glass-reinforced laminate. In practical terms, they carry signals and power like a conventional PCB, but they can twist, fold and conform to the product architecture. That makes them valuable in compact electronics, wearable devices, medical systems, imaging assemblies, industrial controls and advanced AI hardware where interconnect geometry matters as much as electrical performance.

How flexible circuits work at a physical level

At the core of a flexible circuit is a thin dielectric substrate, usually polyimide, with copper laminated or deposited onto its surface. The copper is then etched to form conductive traces, pads and connection features. Protective coverlay or other insulating layers are added over the circuitry, leaving openings only where components, connectors or solder joints need access.

The operating principle is straightforward. Electrical current flows through the patterned copper just as it would on a rigid PCB. The difference lies in the materials and stack-up. Because the base film is thin and flexible, and because the copper can be formed in carefully controlled geometries, the finished circuit can bend without losing continuity when designed within its intended mechanical limits.

That last point matters. Flex circuits are not simply rigid PCBs made thinner. They are engineered systems where conductor thickness, bend radius, adhesive choice, neutral axis position and reinforcement strategy all affect service life. A flex that only folds once during assembly can be designed quite differently from one expected to survive millions of dynamic cycles.

The materials that make flex possible

Polyimide is widely used because it combines heat resistance, dimensional stability and good electrical insulation with mechanical flexibility. It performs well through soldering processes and in demanding environments, which is why it remains a standard choice for high-performance applications.

Copper is the conductive layer, but not all copper behaves the same way in a flexing environment. Rolled annealed copper is generally preferred for dynamic flexing because its grain structure supports better fatigue resistance than electrodeposited copper. If the circuit will move repeatedly, material selection becomes a reliability issue rather than a minor specification detail.

Coverlay protects the traces while allowing the circuit to remain flexible. In some designs, flexible solder mask may be used, but coverlay often provides stronger mechanical protection in bend regions. Adhesive systems, stiffeners and reinforcement materials are then added where needed. A connector area might need local rigidity, while the main body of the circuit stays compliant.

Single-sided, double-sided and multilayer flex

How flexible circuits work also depends on the circuit architecture. A single-sided flex has one conductive layer and is often the most economical option when routing is relatively simple. It suits many sensor, display and connector applications where a low profile and straightforward interconnect are the priority.

Double-sided flex adds copper on both sides of the substrate, with plated through-holes or vias linking layers where required. This increases routing density and supports more complex electrical designs, though it also introduces additional design constraints around thickness, manufacturability and bend behaviour.

Multilayer flex and rigid-flex constructions go further. These are used when designers need a combination of compact packaging, multiple interconnections and local rigid component mounting areas. In a rigid-flex assembly, rigid sections support components and connectors while flexible sections provide folded or moving interconnects between them. This can reduce wiring, assembly labour and connector count, but the design effort is correspondingly higher.

What happens when a flex circuit bends

A flex circuit survives bending because different layers share the mechanical strain. During a bend, the outside of the curve is in tension and the inside is in compression. Somewhere in between sits the neutral axis, where strain is lowest. Good flex design aims to position critical copper features as close as practical to that low-strain region.

This is why stack-up decisions matter so much. Thick copper improves current capacity but becomes less forgiving in a tight bend. Extra layers support routing complexity but increase stiffness. Adhesive-based constructions may behave differently from adhesiveless laminates. There is no single best build for every project - the right answer depends on whether the circuit is static, semi-dynamic or truly dynamic.

Trace layout also plays a direct role. Sharp corners can concentrate stress, so curved routing is generally preferred in bend areas. Conductors are often staggered rather than placed directly on top of one another across multiple layers, because that helps distribute strain. Designers may also avoid vias, pads and abrupt width changes in the bend zone to reduce weak points.

Electrical performance is only half the story

In many products, the value of flex comes from solving packaging problems. It can replace wire harnesses, remove bulky connectors, reduce assembly steps and support thinner, lighter product designs. For compact imaging, robotics and embedded systems, that can translate into better manufacturability and more usable internal space.

Still, electrical performance cannot be treated as secondary. Controlled impedance may be necessary for high-speed data. Trace resistance affects power delivery. Crosstalk, shielding and grounding strategy all matter, especially in dense electronics and sensitive sensor systems. If the circuit moves during operation, repeated mechanical strain can also influence long-term electrical stability.

This is where experienced design support becomes valuable. A flex circuit has to fit the mechanical envelope, survive the motion profile and maintain electrical integrity under real operating conditions. Treating it as a simple cable substitute often leads to costly redesigns later.

Manufacturing steps that shape the final result

The production route for a flexible circuit typically begins with copper-clad film. The copper is photo-imaged and etched into the required circuit pattern. Holes are drilled or laser formed if interlayer connection is needed, then plated where applicable. Coverlay is laminated, openings are defined for pads and termination areas, and stiffeners are bonded where local support is required.

Depending on the design, additional processes may include surface finish application, component assembly, selective reinforcement and final forming. Tight process control is important because flexible materials behave differently from rigid laminates during handling and thermal cycling. Registration, adhesion and dimensional stability all influence yield and repeatability.

For procurement teams and OEMs, this means supplier capability matters beyond price. The practical difference between a flex that performs in production and one that causes integration issues often comes down to process discipline, material knowledge and front-end design review.

Common design trade-offs

Flex circuits offer major advantages, but they do not remove engineering constraints. Cost is one trade-off. A well-designed flex can reduce total system cost by replacing multiple parts and simplifying assembly, yet the unit price may be higher than a basic rigid board or simple cable if viewed in isolation.

Durability is another area where context matters. Flex circuits are highly reliable when designed for the actual bend profile, temperature range and duty cycle. They are not indestructible. Repeated sharp folding, poorly supported terminations or unsuitable copper selection can shorten life significantly.

There is also a balance between standardisation and customisation. Off-the-shelf flex products can accelerate development when the geometry and performance match the application. Bespoke design becomes the better route when routing density, mechanical form, connector position or environmental demands are specific to the end product. For companies developing next-generation electronics, having both options available from one engineering partner can simplify the path from prototype to production.

How flexible circuits work best in modern product development

The most successful flex implementations are usually decided early, not added late. When electrical, mechanical and manufacturing teams align from the start, the flex can become part of the product architecture rather than a workaround. That is especially relevant in high-density electronics, AI systems, vision modules and moving assemblies, where every millimetre and every connection path affects performance.

A well-engineered flex circuit does more than route signals. It creates design freedom. It allows hardware teams to package electronics in ways that rigid interconnects cannot support, while maintaining precision, flexibility and reliability across the finished system. For businesses building advanced devices at scale, that is not a niche advantage. It is often the difference between a design that merely fits on paper and one that performs consistently in the field.
