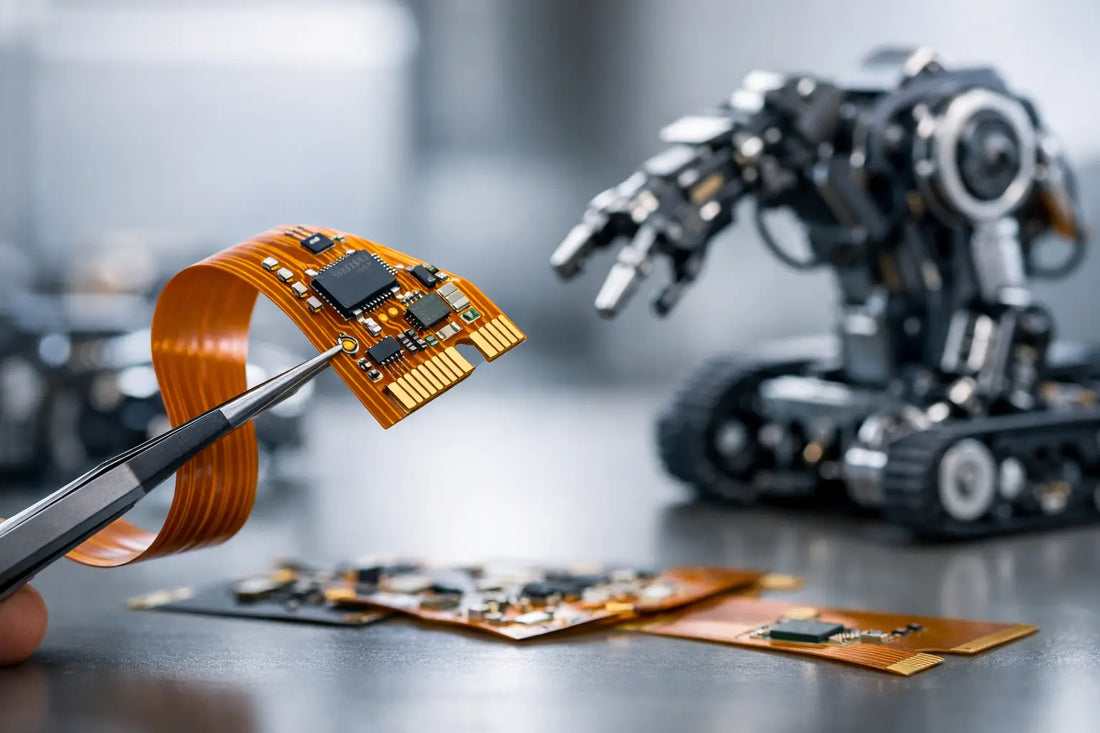

Flex PCB for Robotics: What Actually Matters

A robot arm that performs perfectly on the bench can start failing the moment it enters real motion. Cables twist, connectors loosen, space disappears, and every extra gram begins to matter. That is exactly where flex PCB for robotics becomes less of a packaging choice and more of a system-level design decision.

In robotics, interconnects are not passive. They move with joints, sit inside tight envelopes, carry mixed power and data, and must survive repeated bending without introducing intermittent faults. A well-designed flex circuit can reduce bulk, improve routing control and support more compact assemblies. A poor one can create stress points, EMI issues and service headaches. The difference is rarely the material alone. It comes down to how the electrical, mechanical and manufacturing requirements are balanced from the start.

Why flex PCB for robotics is often the better fit

Traditional wire harnesses still have their place, particularly in larger systems with generous space and low cycle demands. But many modern robotic platforms are moving in the opposite direction. Arms are lighter, end effectors are denser, mobile systems are more compact, and sensor count continues to rise. In that environment, flex circuits offer practical advantages that are difficult to ignore.

The first is controlled geometry. A flex PCB gives engineers a defined routing path rather than a loose cable bundle that may shift over time. That matters in joints and articulated assemblies where repeatable movement is essential. The second is packaging efficiency. Flex can fold, wrap and conform to non-planar spaces, helping teams use available volume more intelligently. The third is integration. It is often easier to incorporate signals, power lines and component interfaces into a purpose-designed flex architecture than to manage multiple discrete interconnects.

That does not mean flex is always the answer. If a design needs frequent field replacement, very long cable runs or exceptionally high current in a harsh mechanical environment, a conventional harness may still be the more practical choice. The right answer depends on motion profile, service strategy, enclosure constraints and production volume.

Where robotics applications benefit most

The clearest use cases tend to be systems where movement and miniaturisation meet. Collaborative robot joints, compact servo modules, autonomous mobile robots, camera gimbals, grippers and advanced sensor heads all place pressure on interconnect design. In each case, routing space is limited and motion reliability is non-negotiable.

Joint-level electronics are a common example. As actuators, encoders, temperature sensing and local control boards move closer together, the interconnect path becomes tighter and more complex. A flex PCB can route these signals through a constrained joint without the excess bulk of discrete wiring. In sensor-rich platforms, flex also helps manage high-density connections between imaging modules, processing boards and peripheral devices.

End effectors present a slightly different challenge. Here, the issue is often repeated movement combined with weight sensitivity. A bulky harness can affect balance, response and tool geometry. Flex circuits can help reduce mass while maintaining a cleaner integration path.

Designing for motion, not just fit

One of the most common mistakes in robotic interconnect design is treating flex as a static component in a dynamic system. A layout that fits the CAD envelope is only the starting point. The real question is how that circuit behaves over thousands or millions of cycles.

Bend radius is critical. Tight bends increase localised stress and shorten service life, especially where copper traces are concentrated. The stack-up matters as well. Copper thickness, adhesive system, coverlay design and neutral axis placement all influence how the circuit responds to repeated flexing. Designers also need to think carefully about where the circuit is allowed to move and where it is mechanically restrained.

Trace routing should reflect the direction of motion. Smooth transitions are preferable to abrupt changes, and conductor placement should avoid creating hard stress concentrations. Stiffeners can be useful, but only when positioned with a clear understanding of how loads transfer through the assembly. If the transition from rigid to flexible sections is poorly managed, the result can be early cracking or delamination.

For robotics, dynamic flex performance should be treated as a design discipline in its own right. This is not simply a thinner PCB. It is an electromechanical component that must be engineered for movement.

Electrical performance in compact robotic systems

Robotics rarely carries just one signal type. A single interconnect may need to handle motor power, encoder feedback, high-speed data, low-voltage control and sensor interfaces within the same constrained path. That creates layout and isolation challenges which need careful attention.

Power and signal separation is one obvious requirement, but not the only one. High-speed lines may need impedance control. Sensitive sensor traces may require shielding or considered grounding. Motor noise can couple into adjacent circuits if spacing and return paths are poorly defined. In a compact robotic assembly, these issues become more pronounced because there is less physical distance available as a safety margin.

Thermal conditions also deserve more attention than they sometimes receive. Flex circuits are often installed close to motors, drivers and processors, all of which can raise local temperatures. Material selection and copper design should take those conditions into account, particularly where long-term reliability is a concern.

This is where early collaboration between mechanical, electrical and manufacturing teams tends to pay off. If the flex is only reviewed once the enclosure is frozen, compromises become expensive.

Material and construction choices that affect reliability

Not all flex constructions are equal, and robotics applications quickly expose weak assumptions. Polyimide is widely used for good reason, but the broader construction still needs to suit the duty cycle and environment. Single-sided flex may work for simpler routing, while multilayer designs support denser architectures at the cost of increased complexity and stiffness.

Copper type matters. Rolled annealed copper is often preferred for dynamic flexing because it generally offers better fatigue resistance than electrodeposited copper. Coverlay selection, adhesive choice and surface finish also affect both manufacturability and field performance.

Environmental exposure adds another layer. If a robotic system operates in industrial settings, the flex may face vibration, dust, oils, cleaning agents or temperature swings. A design that performs well in a controlled lab environment may not hold up in production use without the right protective strategy.

Reliability is therefore not just a function of the drawing. It sits in the combination of material set, stack-up, bend management and assembly method.

When standard products work and when custom design is justified

For some projects, a standard flex solution is the fastest and most efficient route. If the routing geometry, pin count and mechanical envelope align with an available product, using a proven standard part can shorten development time and reduce risk. This is especially useful in prototyping, evaluation builds and lower-complexity assemblies.

Custom design becomes worthwhile when the robot architecture is doing something specific that standard formats cannot support. That may include unusual joint geometry, mixed-signal constraints, repeated dynamic bending, integrated shielding, unusual connector placement or strict weight targets. In those cases, bespoke flex design is not an indulgence. It is often what allows the full system to perform as intended.

For OEMs and advanced development teams, the real advantage is being able to move from off-the-shelf options to custom engineering without changing supplier strategy. That reduces friction in programmes that need both speed and design precision. For companies building next-generation electronics, this combined model can be far more efficient than splitting standard sourcing and custom development across multiple vendors.

Questions worth asking before you commit

Before specifying a flex PCB for robotics, it is worth pressure-testing the design intent. How many bend cycles are expected, and under what motion pattern? Is the circuit dynamically flexing, or only folded during assembly? What current levels and signal types share the same construction? Where are the stress concentrations likely to occur? How will the assembly be installed, tested and serviced?

These questions sound basic, but they often reveal whether a flex concept is genuinely engineered or merely convenient. They also help define whether the right answer is single-sided flex, multilayer flex, rigid-flex, or a more conventional interconnect approach.

The strongest robotic systems are usually the ones that treat interconnects as performance-critical hardware rather than afterthoughts. That applies as much to procurement as it does to design. Lead time, consistency, technical support and manufacturing discipline all affect outcomes, particularly when a product moves from prototype to repeatable production.

At Cocom, that engineering-first view is central to how flex solutions are developed for advanced electronics. In robotics, where precision, flexibility and reliability must exist together, that approach matters.

If your robot needs to move with accuracy, survive repeated motion and fit more capability into less space, the interconnect deserves the same level of design attention as the control board or actuator. That is usually where the better product starts.
