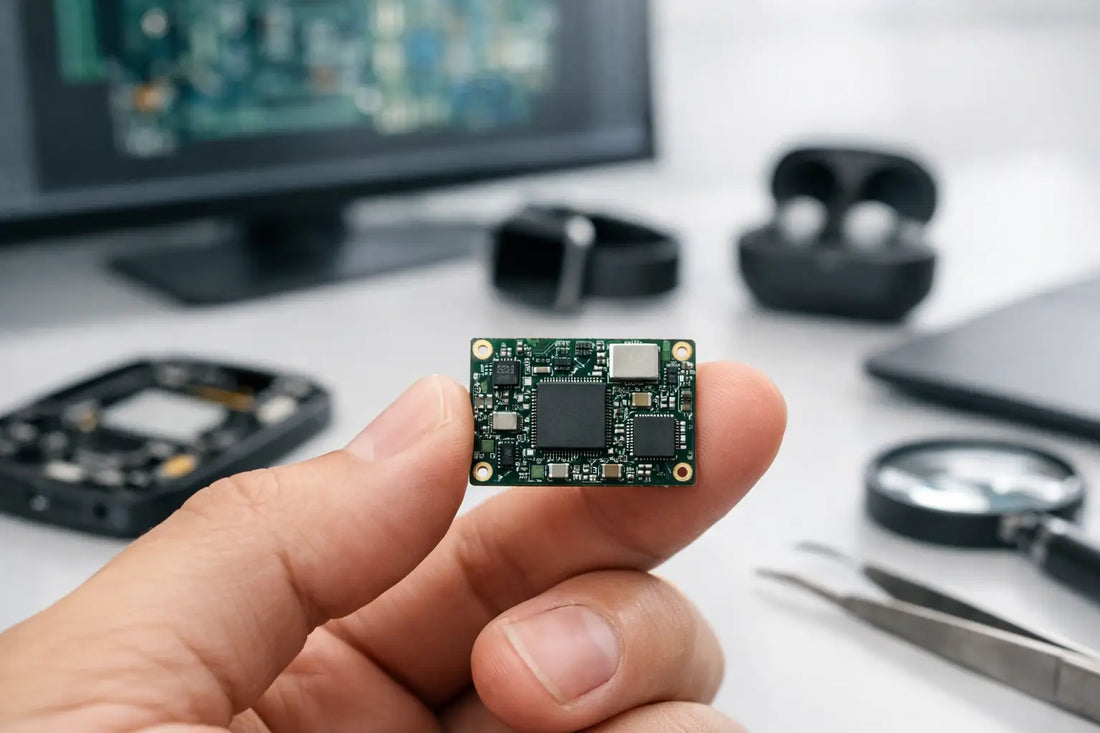

PCB Design for Compact Devices That Performs

When a product envelope shrinks by a few millimetres, the PCB usually pays the price. Components move closer together, routing channels disappear, thermal margins tighten, and assembly tolerances become less forgiving. That is why pcb design for compact devices is not simply standard board design on a smaller footprint. It is a different engineering problem, with different failure modes and much less room for compromise.

For OEMs building AI hardware, robotics, sensors, wearables or portable control systems, compactness is rarely a cosmetic requirement. It affects signal quality, manufacturability, service life and time to production. The board has to fit, but it also has to perform consistently under real operating conditions. Good compact design starts by treating space as a system constraint rather than a layout inconvenience.

What changes in PCB design for compact devices

As boards become denser, interactions between electrical, mechanical and thermal design become more pronounced. A trace route that looks acceptable in isolation may create crosstalk beside a high-speed pair. A component placement decision that saves area may push heat into a sensor zone. A connector chosen for height reduction may introduce assembly complexity or strain risk.

This is where compact PCB design becomes an exercise in trade-offs. Reducing board area often means increasing layer count. Thinner constructions can help fit the enclosure, but may limit mechanical stiffness. Tighter component placement improves space efficiency, but can reduce rework access and increase local heating. The best result comes from balancing these constraints early, before layout decisions become expensive to reverse.

In practice, compact devices demand closer collaboration between electronics, mechanical and manufacturing teams. If the enclosure, interconnect, board stack-up and assembly method are treated separately, performance issues usually appear late in the programme.

Start with the mechanical envelope, not the schematic

Many compact products run into trouble because the PCB is designed first and fitted into the product later. In small devices, the enclosure, mounting points, bend areas, connector clearances and cable exits should shape the board from the beginning.

That includes more than X and Y dimensions. Board thickness, keep-out regions, screw boss positions, shielding constraints and insertion paths all influence the viable layout. If the device includes movement, vibration or repeated flexing, the interface between rigid PCB sections and interconnects becomes even more critical.

This is one reason flex and rigid-flex architectures can outperform a conventional rigid board plus separate wiring. In the right application, they reduce bulk, simplify routing through restricted spaces and improve integration. They are not automatically the lowest-cost option, but in compact assemblies they can remove connectors, reduce manual assembly steps and create a cleaner mechanical package.

Layout density needs discipline, not just smaller parts

Miniaturisation often leads teams straight to fine-pitch packages and the smallest passive footprints available. Sometimes that is necessary. Sometimes it creates avoidable production risk.

High-density layout works best when component choice aligns with assembly capability, inspection requirements and service expectations. A smaller package may save space, but if it increases tombstoning risk, complicates rework or pushes yields down, the apparent layout gain can become a production penalty.

Placement strategy matters as much as package size. Keep critical signal paths short and direct. Group functions logically so power regulation, processing, sensing and interface circuits do not compete unnecessarily for routing space. Leave realistic access around test points, programming interfaces and connectors where they are still required. In ultra-compact products, every square millimetre should have a job.

A disciplined floorplan also reduces the need for routing compromises later. That is especially valuable when dealing with mixed-signal boards, RF sections or vision-related processing modules where isolation and return path control are essential.

Stack-up planning is where performance is won or lost

In compact PCB design, the stack-up is not a background detail. It drives impedance control, EMI behaviour, power integrity and routing efficiency.

A simple two-layer board may appear attractive on cost, but if it forces fragmented ground returns, long detours or unstable high-speed behaviour, it is usually the wrong economy. Adding layers can create far cleaner routing, stronger reference planes and better overall reliability. The right question is not how few layers can be used, but which stack-up gives the product the performance margin it needs.

That said, more layers are not always better. Extra complexity can increase cost and lead time, and very thin multi-layer constructions need careful handling in fabrication and assembly. Material selection also matters. Standard FR-4 may be entirely suitable for one product and insufficient for another with higher frequencies, tighter thermal demands or repeated mechanical stress.

The compact form factor tends to amplify these choices. There is less physical separation available to hide poor return paths or casual power distribution.

Thermal design becomes a first-order issue

Small devices concentrate heat. That sounds obvious, yet thermal behaviour is still underestimated at the PCB stage.

Dense processing, power management and wireless functions can create hot spots quickly, particularly when airflow is limited and the enclosure is sealed. The board layout has to support thermal spreading, component spacing where practical, copper balancing and effective heat transfer to the chassis or dedicated thermal features.

The trade-off is familiar. Copper pours and thermal vias improve heat movement, but they also affect routing freedom. Heat sinks or shields may solve one issue while creating a height problem elsewhere. Sensitive analogue sections and image sensors may need to be isolated from warmer power devices. In compact systems, thermal and electrical placement decisions should be made together.

If the device is battery-powered, thermal design also connects directly to efficiency. Every unnecessary loss becomes both wasted energy and extra heat that the enclosure must manage.

Signal integrity gets harder as spacing gets tighter

Compact boards tend to place fast signals, switching regulators, antennas and sensitive analogue nodes in close proximity. That increases the chance of coupling, noise injection and unstable behaviour.

The answer is not simply to add shielding everywhere. Better results usually come from clean partitioning, controlled impedance where required, uninterrupted reference planes and sensible layer usage. High-speed lines should be routed with clear return paths. Differential pairs need consistency, not approximate symmetry. Switching nodes should be kept tight and away from vulnerable circuits. Antenna areas need the clearance they were designed for, even when the layout is under pressure.

Compact products often carry multiple functions in one small assembly, so one subsystem can easily undermine another. A board that passes basic bring-up on the bench may still fail in the final enclosure, beside a battery, display, motor or metal housing. That is why early validation against the real mechanical environment matters.

DFM and testability still matter in small formats

When space is tight, design for manufacture is often the first discipline to be squeezed. That is a mistake.

A compact board still has to be fabricated consistently, assembled reliably and tested efficiently. Fine features, tight component spacing and unusual board outlines all need to align with the chosen manufacturing process. Paste deposition, stencil design, fiducials, panelisation strategy and warpage control can all influence yield.

Testability is equally important. Not every compact board can accommodate generous test point access, but removing test strategy altogether creates risk later. Boundary scan, functional fixtures, programming access and carefully selected probe points should be considered before the layout is frozen.

For products moving from prototype to volume, these decisions are commercial as well as technical. A design that works only with exceptional handling is harder to scale.

Where flex and rigid-flex can change the design equation

For many compact devices, the shortest route to better integration is not a denser rigid board. It is a different interconnect strategy.

Flex and rigid-flex solutions can fold electronics into complex housings, bridge moving sections and reduce connector count. They can also improve packaging efficiency in products where conventional cable assemblies consume too much volume or create reliability concerns. The key is to design them properly from the outset, with correct bend radii, material choices, stiffeners and strain management.

This is where an engineering-led partner adds real value. Cocom works with customers who need compact electronic systems to fit demanding mechanical spaces without sacrificing precision, flexibility or reliability. In these applications, the interface between PCB design and interconnect design is often where the performance margin is created.

The best compact boards are designed as systems

PCB design for compact devices rewards early engineering discipline. The strongest designs do not emerge from forcing a full-sized architecture into a smaller box. They come from treating space, heat, signal behaviour, manufacturability and interconnect as one connected problem.

For product teams under pressure to reduce size and maintain performance, that usually means making sharper decisions earlier - about stack-up, architecture, package strategy and mechanical integration. A smaller board is not necessarily a better board. The better board is the one that fits the product, survives production and performs exactly as the application demands.

If your next device is running out of space, that is usually the moment to raise the design standard, not lower it.
