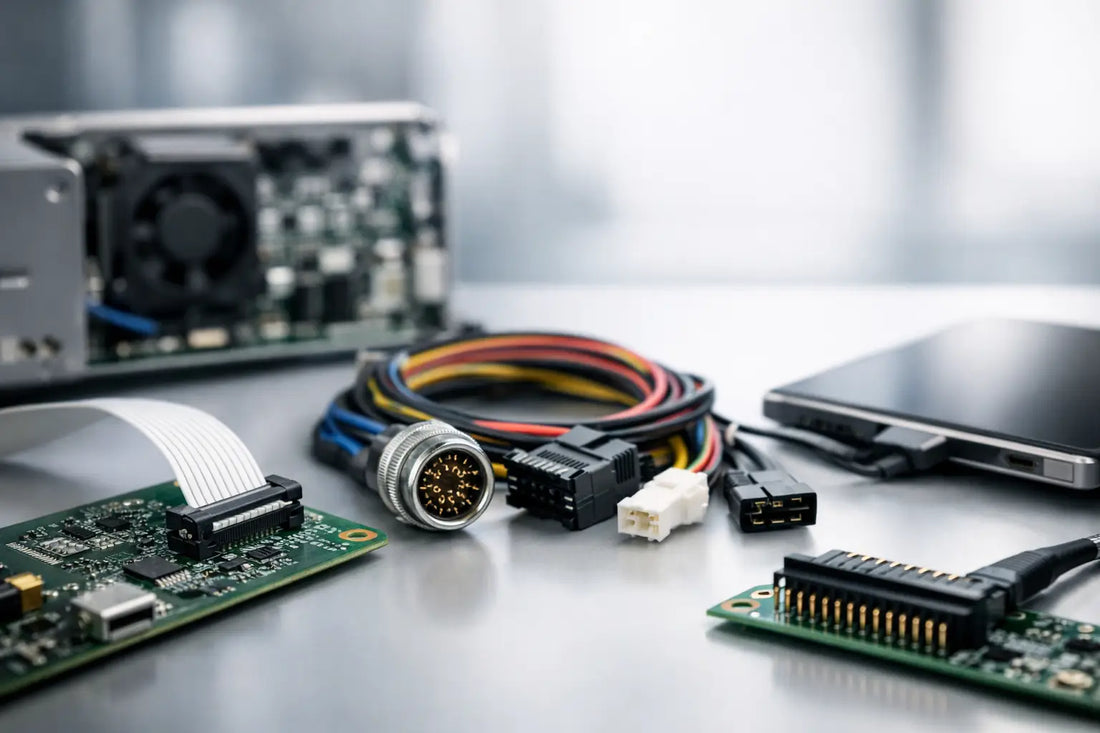

Interconnect Solutions for OEM Electronics

A connector choice made late in the design cycle can force a costly board rework, increase assembly time, or limit product reliability long after launch. That is why interconnect solutions for OEM electronics deserve attention much earlier - especially in products where space is tight, movement is constant, and signal performance cannot be left to chance.

For OEM teams building AI hardware, robotics, imaging systems, industrial control units and compact embedded devices, the interconnect is not a minor detail. It affects enclosure design, routing strategy, service life, manufacturability and procurement risk. The right decision is rarely about picking a standard part from a catalogue and moving on. It is about matching the interconnect architecture to the realities of the product.

Why interconnect solutions for OEM electronics need early design input

In many programmes, interconnects are treated as a packaging exercise. The PCB is defined, the enclosure is nearly frozen, and then the team tries to connect everything inside the remaining volume. That approach works for simple assemblies, but it creates problems in advanced electronics where every millimetre and every bend radius matters.

A flex cable that is too stiff can complicate installation and stress solder joints. A connector system that looks acceptable electrically may create issues under vibration. A routing path that seems tidy in CAD can become difficult to assemble consistently on the production line. These are not unusual edge cases. They are common failure points when the interconnect strategy is separated from the wider system design.

Early engineering input changes the conversation. Instead of asking what can fit into the leftover space, the team can ask what interconnect approach best supports the product's electrical, mechanical and manufacturing requirements from the outset.

The real design pressures behind OEM interconnect choices

Most OEM buyers are balancing several constraints at once, and they rarely point in the same direction. Miniaturisation pushes designs towards thinner, lighter and more compact interconnect formats. Reliability may push in favour of more durable materials, additional strain relief or revised routing. Cost targets can encourage standardisation, while performance targets may require a more tailored design.

Signal integrity is often one of the first technical filters. High-speed data, camera interfaces, sensor arrays and tightly timed control systems all place demands on conductor layout, shielding approach and impedance management. In these cases, the interconnect must be considered as part of the electrical path, not just a physical bridge between boards.

Mechanical behaviour matters just as much. Static bends, repeated flexing, torsion, shock and vibration all influence long-term performance. A cable in a medical imaging device may face very different stresses from one in a robotic arm or an inspection system, even if both carry similar signals. The best solution depends on how the assembly moves, how often it moves, and what happens when installers or service engineers handle it in real use.

Then there is manufacturability. A design that performs well in a prototype can still create avoidable production issues if alignment is awkward, connector mating is difficult or the cable form does not support repeatable assembly. OEM programmes that scale successfully usually treat the interconnect as a production component as well as a design component.

Where standard products work well

Off-the-shelf interconnects can be the right answer when timelines are tight and the application fits known parameters. Straight flex assemblies, shaped flexis and other established formats are useful when routing requirements are clear, electrical demands are understood and the design envelope does not require unusual geometry.

This route can reduce development time and simplify sourcing, especially for prototyping or early-stage builds. It also helps engineering teams validate a broader system concept before committing to a fully custom part. For procurement, standard products often bring clearer lead times and simpler commercial decisions.

That said, standard does not always mean compromise. In many OEM applications, a well-specified standard flex solution can deliver the precision and reliability required without introducing unnecessary design complexity. The key is knowing when the fit is genuine and when a standard part is merely being forced into a job it was not designed to do.

When custom interconnect solutions make more sense

Custom interconnect design becomes valuable when the product architecture is driving the cable, rather than the cable driving the product. This is common in compact electronics, unusual enclosure shapes, multi-board systems and products that combine power, signal and data paths in limited space.

A custom flexi or PCB-based interconnect can be shaped around exact mechanical constraints, connector orientations and bend requirements. That allows OEM teams to reduce dead space, improve airflow, simplify installation and remove intermediate parts. In some cases, a custom design can replace multiple discrete cables or rigid boards, reducing assembly steps and potential failure points.

Custom work is also useful when reliability requirements are high. Material selection, copper weight, stack-up, stiffeners and termination method can all be tuned to suit the environment. For applications with repeated motion, this level of control often makes the difference between a design that survives qualification and one that fails after limited cycling.

There is a trade-off, of course. Custom parts require more engineering definition, tighter collaboration and careful validation. They are not automatically the fastest route. But when the product needs exact fit, controlled performance and dependable repeatability, customisation often lowers overall risk rather than increasing it.

Flex circuits, PCBs and hybrid approaches

Choosing between flex circuits, rigid PCBs and hybrid constructions is rarely a binary decision. Each serves a different purpose, and many advanced products use more than one approach.

Flex circuits are well suited to compact spaces, moving assemblies and designs where weight matters. They can support elegant routing and reduce connector count, but their performance depends heavily on correct handling of bend zones, reinforcement and material choice.

Rigid PCBs remain the right solution where structural stability, component mounting density and fixed geometry are priorities. They offer predictability and can be more straightforward for certain assemblies, especially where movement is not a factor.

Hybrid designs, including rigid-flex approaches or custom combinations of flex and PCB elements, can bridge the gap. These solutions are often effective in OEM products that need a combination of static processing, compact packaging and controlled movement. They are more complex to define, but they can remove significant integration problems elsewhere in the system.

For engineering teams, the right question is not which format is best in general. It is which format best supports the intended electrical path, mechanical environment and production method.

What OEM buyers should assess in a supplier

Interconnect performance starts with design, but delivery depends on supplier capability. OEM buyers should look beyond part availability and consider whether the supplier can support the full path from concept through to production.

Technical engagement matters. A supplier that understands flex design rules, PCB integration, tolerance control and production realities can identify issues before they become expensive. This is particularly relevant when products are still evolving or where the interconnect influences other parts of the assembly.

Manufacturing control is equally important. Consistent output, material traceability and reliable process discipline all support better product quality. For programmes moving from prototype to volume, supplier responsiveness also becomes critical. Design teams and procurement teams both need confidence that changes can be managed without unnecessary delay.

This is where a combined standard-and-custom model can be valuable. It allows buyers to move quickly with established products where appropriate while still having access to bespoke engineering when the design requires something more exact. For many OEMs, that reduces fragmentation across suppliers and shortens decision cycles.

Cocom operates in that space, combining ready-to-order flex products with custom flexi and PCB engineering for applications where precision, flexibility and reliability are non-negotiable.

A better way to specify interconnect solutions for OEM electronics

The strongest interconnect specifications are built around application data, not assumptions. That means defining electrical requirements, routing constraints, operating conditions, movement profile, expected life cycle and assembly method before final part selection.

It also means accepting that there is rarely a universal best option. A lower-cost standard flex may be ideal for one assembly and entirely wrong for another. A highly tailored solution may improve performance but only justify its cost when space, motion or reliability demands are severe enough. Good engineering decisions sit in that balance.

For OEM electronics, interconnects are part of system performance. They influence signal quality, product durability, serviceability and production efficiency in ways that are easy to underestimate until something goes wrong. Bringing that decision forward, and treating it as an engineering discipline rather than a late-stage purchase, usually leads to better hardware and fewer avoidable compromises.

If you are developing next-generation electronics, the most useful question is not whether you need a standard part or a custom one. It is whether your current interconnect choice genuinely reflects how the product will be built, used and expected to perform.
