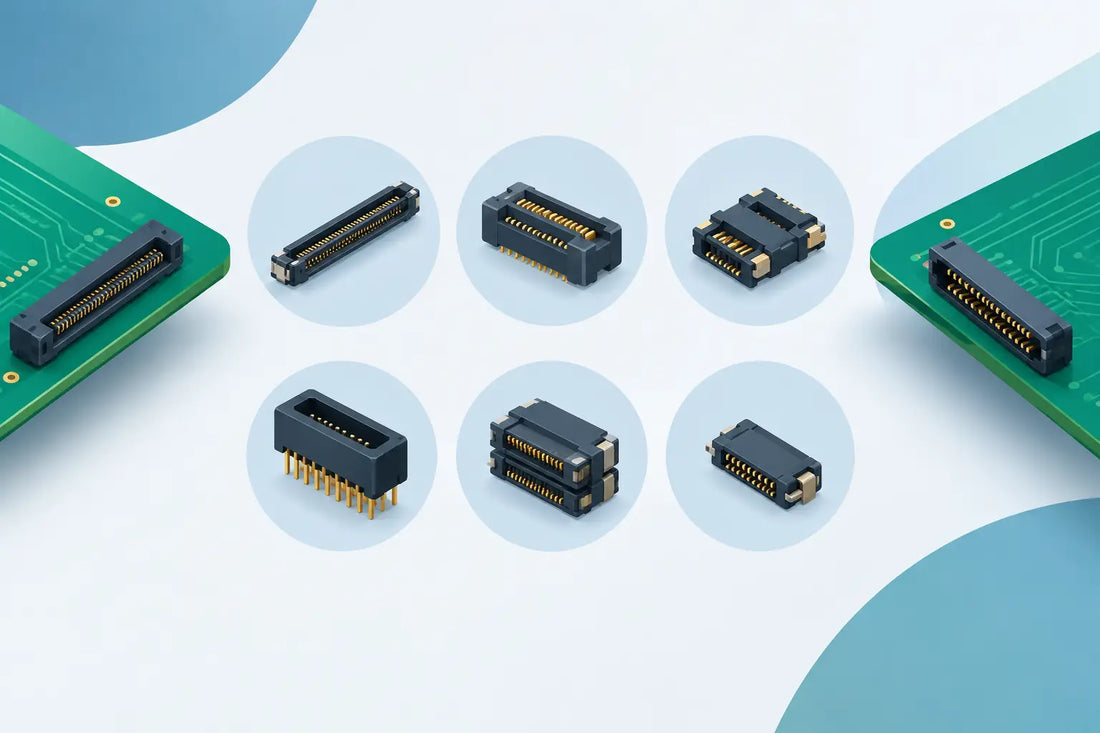

Board to Board Interconnects Comparison Guide

A board to board interconnects comparison becomes necessary the moment a design must move beyond a simple fixed PCB stack. The chosen interface affects enclosure height, signal integrity, assembly method, repair access and the freedom to place boards where the product needs them. For compact AI hardware, robotics, imaging systems and advanced control electronics, it is an architectural decision rather than a late-stage purchasing exercise.

Board to Board Interconnects Comparison: The Main Options

Board-to-board connection methods are often grouped together, but their mechanical behaviour is fundamentally different. Pin headers, mezzanine connectors, flex interconnects and wire-to-board assemblies each solve a distinct integration problem.

Pin headers and socket systems

Pin headers are familiar, widely available and cost-effective for low to moderate density connections. They can be arranged in single or dual rows, support through-hole or surface-mount assembly, and offer straightforward board separation during service. Their simplicity makes them useful for development hardware, industrial control boards and products where vertical space is available.

The trade-off is dimensional control. Standard headers occupy significant height, and long exposed pins can introduce unwanted inductance and susceptibility to vibration. Pitch, pin length and mating alignment must be considered carefully where boards are closely stacked. They are also less suitable for very high-speed differential interfaces unless the connector family has been designed and characterised for that use.

Mezzanine connectors

Mezzanine connectors are engineered for parallel PCB stacking at a controlled height. They provide high contact density within a compact footprint and are available with fine pitches, shielded configurations and specified performance for high-speed data. This makes them a strong choice for processor modules, embedded compute assemblies, camera electronics and dense multi-board systems.

Their strength is precision, but that precision demands disciplined design. Mating height, coplanarity, stack-up tolerance and insertion force all need review early in the mechanical design. A mezzanine interface fixes the relative position of two boards, so it offers little freedom if boards need to be offset, folded around a battery, or installed at different angles. Rework can also be more demanding than with larger-pitch connectors.

Flexible printed circuit interconnects

Flex interconnects replace rigid, fixed geometry with controlled routing between PCBs. A flexi can connect boards at different elevations, orientations or positions while keeping the assembly thin and lightweight. It is particularly valuable where the enclosure is constrained, where a moving element is present, or where several wire assemblies would add bulk and assembly variation.

A flexible circuit can carry power, control lines, analogue signals and high-speed data when its construction is designed for the application. Trace geometry, impedance control, stiffeners, bend radius, shielding and termination style are all selectable variables. That level of control allows an interconnect to become part of the system layout, rather than an obstacle to it.

The engineering requirement is greater than for a standard connector. Dynamic flexing, bend location, strain relief and installation sequence must be defined rather than assumed. A flexi intended for occasional assembly movement is not automatically suitable for millions of motion cycles. For repeated movement, the bend area should be free of vias and abrupt trace changes, with conductors routed to support the required flex life.

Wire-to-board harnesses

Wire harnesses remain the practical option for higher current, longer distances and assemblies where boards are installed separately. They tolerate positional variation and can simplify access in large equipment. Crimped connections also offer a familiar route for field replacement where serviceability takes priority over miniaturisation.

However, harnesses consume space, require manual routing and introduce additional parts such as wires, terminals, housings and retention features. Each added termination is another process to control. In compact products, a well-designed flex interconnect can reduce this component count while improving routing consistency.

Compare the Interface Against the Real Constraint

The most suitable choice is rarely the connector with the highest pin count or the lowest unit cost. It is the one that resolves the dominant system constraint without creating a more expensive problem elsewhere.

For a fixed board stack with minimal separation, mezzanine connectors usually provide the cleanest density and the most repeatable assembly geometry. For a controller board mounted away from a sensor, display or moving mechanism, flex interconnects offer routing freedom that a rigid stack cannot. Pin headers suit accessible, cost-sensitive designs where height is less critical, while wire harnesses remain appropriate for power distribution and serviceable larger assemblies.

Electrical requirements can change the decision quickly. High-speed interfaces need a defined impedance path, controlled return currents and careful reference-plane continuity. A generic header may carry the signal electrically, but that does not mean it will preserve the required margin at the intended data rate. Similarly, high-current paths need contact ratings assessed alongside temperature rise, conductor width, voltage drop and derating within the final enclosure.

Environmental demands matter as well. Vibration can challenge long headers and unsecured harnesses. Repeated motion can fatigue an unsuitable flex circuit. Thermal cycling places stress on solder joints, connector interfaces and rigid-to-flex transitions. Products for industrial, transport or mobile applications should be evaluated as assemblies, not simply as individual rated components.

A Practical Selection Framework

Start by defining the boards' physical relationship. Record the required distance, orientation, allowable movement and access route during installation. A connection that works in a CAD view may be impossible to mate once heatsinks, housings and neighbouring modules are present.

Next, separate signals by function: power, low-speed control, analogue, high-speed digital and sensitive RF or sensor paths. This exposes whether one interface can safely carry everything or whether functions should be separated. A power path that generates heat beside a low-level analogue signal may be electrically possible but undesirable for system performance.

Then establish the performance limits that cannot be negotiated. These may include maximum stack height, minimum bend radius, cycle life, insertion force, differential impedance, current capacity or electromagnetic compatibility. Quantified requirements allow connector families and flex constructions to be assessed on evidence rather than preference.

Finally, examine manufacturing and service together. Ask how the assembly will be built, tested and repaired at volume. Can operators install the interconnect without damaging it? Is visual inspection possible? Does the design require a keyed orientation or a locking feature? Is the mating cycle rating appropriate for prototype iterations and field servicing? A low-cost interface can become expensive if it slows assembly or increases rework.

Where Custom Design Adds Value

Standard parts are the right answer when the geometry, pitch and electrical performance align with the product. They reduce lead time and support rapid prototype builds. Cocom's standard Straight Flexis and Shaped Flexis can provide an efficient starting point where a proven flex format meets the routing requirement.

Custom engineering becomes more valuable when the interconnect must fit a specific mechanical path or combine functions that would otherwise require several parts. A custom flexi can integrate tailored lengths, controlled-impedance traces, shielding, stiffener locations, connector terminations and shaped outlines. It can also accommodate an unusual board relationship without forcing compromise elsewhere in the enclosure.

This is particularly relevant for camera and AI-enabled products, where sensor position, processing boards and mechanical packaging are tightly linked. The interconnect may need to pass through a hinge, around optics, or into a restricted volume while protecting data integrity. Treating it as a designed subsystem helps avoid late changes that affect both electronics and mechanics.

Avoid Common Selection Failures

A frequent mistake is selecting an interface only by pin count and pitch. That approach overlooks the stack height, mating tolerance, signal assignment and mechanical loading that determine real performance. Another is specifying a flex circuit without stating whether it is static, occasionally bent or continuously flexed. Those are different use cases with different construction requirements.

It is also risky to leave connector orientation and strain relief until the enclosure is finalised. The board may be electrically complete yet difficult to assemble, or the cable may be forced into a bend that shortens its working life. Early collaboration between PCB, mechanical and manufacturing teams is usually faster than correcting these issues after tooling or validation has begun.

The right interconnect should make the physical product easier to build and more predictable to operate. Define the board relationship and operating conditions first, then select the connection technology that supports them with the fewest compromises.
