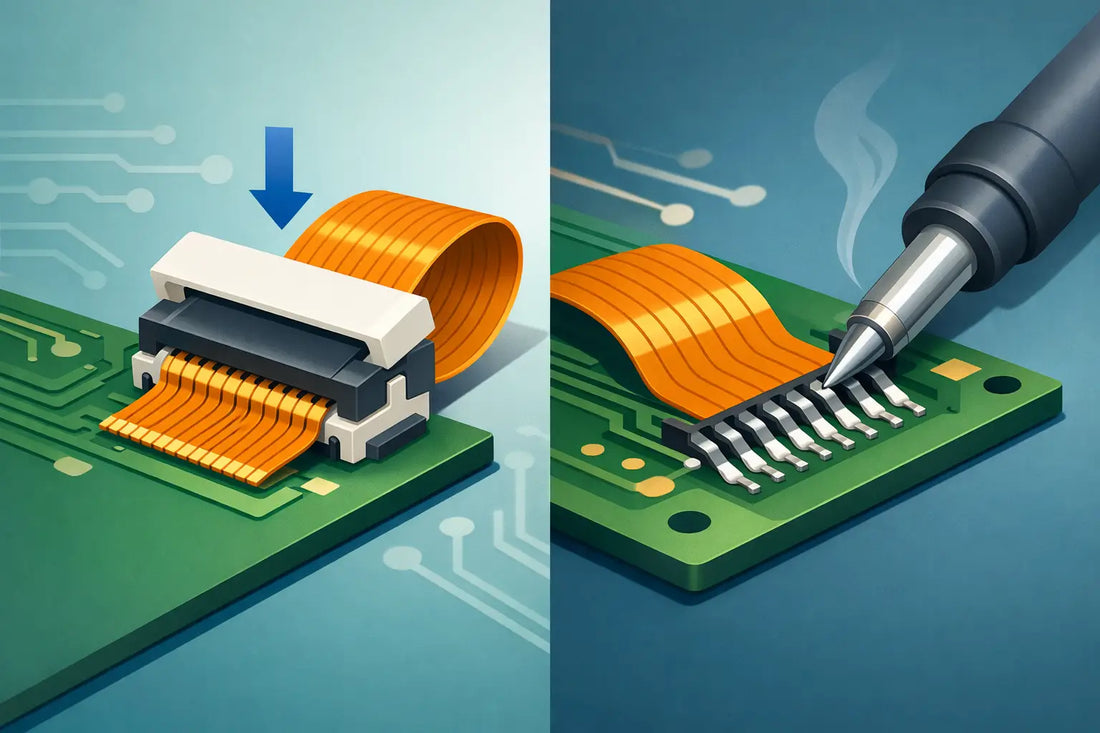

ZIF versus Soldered Flex Connectors: Which Fits?

A flex tail that must be replaced in seconds calls for a different termination strategy from one that will remain inside a sealed instrument for ten years. That is the practical decision behind ZIF versus soldered flex connectors. Both methods can deliver dependable electrical performance, but they distribute risk, cost, assembly effort and serviceability very differently.

For product teams developing cameras, robotics, AI edge hardware and compact industrial equipment, the right choice is rarely about connector preference alone. It depends on the flex construction, available board area, expected mating cycles, environmental demands and the point at which the product must be tested or serviced.

ZIF versus soldered flex connectors: the core difference

A zero insertion force (ZIF) connector accepts a flexible printed circuit (FPC) or flat flexible cable (FFC) with minimal insertion force. A locking actuator then clamps the cable contacts against the connector terminals. The cable can be inserted during final assembly and removed later without applying sustained heat to the flex or PCB.

A soldered flex connection terminates the flex directly onto PCB pads, typically by reflow soldering or controlled hand soldering during prototype work. Once assembled, it becomes a permanent interconnect unless it is deliberately reworked.

This distinction affects much more than the bill of materials. A ZIF interface creates a controlled separation point between two assemblies. A soldered flex removes that separation point, reducing component count and often reducing the overall stack height. Neither approach is automatically more reliable. Reliability comes from choosing a termination method that matches the application and then engineering the full interconnect correctly.

When a ZIF connector is the stronger choice

ZIF connectors are particularly effective where the flex cable must be detached during assembly, inspection, field service or product upgrade. A display module, image sensor assembly or articulated subassembly can be built and tested independently, then connected late in the manufacturing process. This simplifies fault isolation and prevents a single subassembly issue from scrapping a larger, higher-value build.

They also support modular product architecture. If an OEM offers several camera, display or sensor variants, a common main PCB with a compatible ZIF footprint can reduce redesign effort. The flex assembly can change while the host board remains stable, provided pinout, pitch, insertion orientation and electrical requirements are controlled.

For prototypes and low-volume engineering builds, this flexibility is valuable. Teams can iterate on cable length, bend geometry or attached modules without repeatedly applying rework heat to the main board. It also makes test fixtures more practical, particularly when access to the flex tail is constrained after enclosure assembly.

However, a ZIF connector introduces its own design requirements. The specified cable thickness, contact side, conductor pitch and stiffener location must match the connector. The actuator must remain accessible to operators and, where relevant, service technicians. A cable routed with excessive pull, twist or bend stress can work loose over time even if the electrical interface was correctly specified.

ZIF reliability depends on mechanical discipline

The phrase zero insertion force can create a misleading impression that the connection is forgiving. It is not. The cable must be inserted fully and squarely, the locking bar must be closed correctly, and the flex needs strain relief so that movement is not transferred directly into the contact area.

In mobile or vibrating equipment, designers should assess the complete cable route. Retention features, adhesive anchors, enclosure guides and a suitable bend radius can matter as much as the connector itself. Contamination is another consideration. Fine-pitch contacts can be affected by dust, residue or handling damage, particularly in manual assembly environments without disciplined process control.

Where soldered flex connections perform best

A soldered flex connection is often the better option when every millimetre of space matters and the cable is not intended to be removed. Eliminating the connector can reduce height, weight and component count. In highly compact optical, wearable or embedded assemblies, this can be a decisive advantage.

Direct soldering also avoids a mated contact interface. There is no actuator to open, no risk of partial insertion and no connector part to source, place and inspect. For a fixed internal flex in a sealed product, that simplicity can support a very efficient production design.

Soldered flexes are well suited to applications where the cable position is stable after assembly and where the joint can be protected from repeated bending. A correctly designed termination combines adequate solder pad geometry, appropriate coverlay clearance and mechanical reinforcement. The flex should transition into its bend area gradually rather than folding immediately at the solder joint.

The limitation is clear: rework is more demanding. Heat exposure can damage the flexible substrate, lift pads or alter nearby components if the process is not controlled. Repairing a soldered flex may require specialist tooling and skilled operators, and each rework cycle introduces risk. For products that require board-level service, direct soldering can turn a minor module replacement into a more expensive repair.

Process capability matters more than apparent simplicity

Direct soldering may look like the simpler route, but it relies on stable manufacturing control. Paste deposition, component support, thermal profiling and inspection need to be designed around the flex assembly. Flexible circuits can move during placement or reflow unless fixturing is considered early.

Thermal expansion also deserves attention. A rigid PCB and a polyimide flex do not behave identically under heat. Pad design and process parameters must accommodate this without creating solder bridges, insufficient wetting or stress concentrations. For fine-pitch connections, prototype success alone is not enough evidence. The process should be proven at realistic production yields.

Compare the options against the real product requirement

The most useful comparison is not ZIF against soldering in isolation, but the consequences each option creates for the finished system.

| Design consideration | ZIF connector | Soldered flex connection |
|---|---|---|
| Assembly | Supports late-stage connection and modular builds | Requires controlled soldering within the PCB assembly process |
| Serviceability | Cable or module can usually be removed and replaced | Rework is possible but slower, higher risk and more specialised |
| Board space | Requires connector footprint and actuator clearance | Can reduce height and eliminate connector footprint |
| Mechanical retention | Needs cable routing and strain relief around the connector | Needs reinforcement to protect the solder joint and flex transition |
| Cost structure | Adds connector and placement cost | Removes connector cost but may increase process and rework cost |
| Product revisions | Accommodates cable or module changes more readily | Best when the assembly is stable and permanent |

Signal requirements should also influence the selection. High-speed differential signals, controlled-impedance flexes and sensitive analogue routes can be used with either approach, but the connector and cable construction must be considered as one electrical system. Pin assignments, ground references, pair spacing and return-current paths should not be treated as mechanical details.

For higher-speed camera and sensor designs, connector performance data, insertion loss, crosstalk and impedance discontinuities may determine the viable options. Direct soldering can reduce one interface discontinuity, but a well-selected connector system may be entirely appropriate when its electrical limits align with the channel budget. The decision needs measured requirements, not assumptions based on connection style.

Questions to resolve before committing the PCB layout

Start with the intended lifecycle of the assembly. Will the cable be disconnected only once during manufacture, or could it be handled repeatedly during validation and service? A ZIF connector is generally justified when disconnection brings operational value. If the cable will never be removed in normal manufacture or service, direct soldering deserves serious consideration.

Next, examine the physical route. Does the cable emerge at an angle that creates leverage at the connector? Is there room for an actuator to be opened safely? Can the flex be supported near a soldered termination without violating its minimum bend radius? These questions can expose an unsuitable connection method before layout is released.

Then consider supply-chain and production realities. A commonly available ZIF connector with a clear second-source strategy may lower risk, while a soldered flex may simplify the component list but require more capable assembly processes. The lowest unit cost is not always the lowest programme cost when test access, yield, repair and future variants are included.

Finally, define validation around the actual use case. Test mating durability where a ZIF is expected to be opened, and test bend life, vibration and thermal cycling where the cable will experience movement or environmental stress. A specification that looks satisfactory on a drawing should be challenged by the conditions the product will encounter.

Cocom supports this decision at both ends of the development cycle, from ready-to-order flex solutions for rapid builds to custom flexi and PCB engineering for assemblies with demanding space, routing and performance constraints.

The most effective termination is the one that makes the complete product easier to manufacture, verify and maintain without compromising electrical or mechanical performance. Select it early, model the cable route honestly and give the flex connection the same engineering attention as the silicon it serves.
