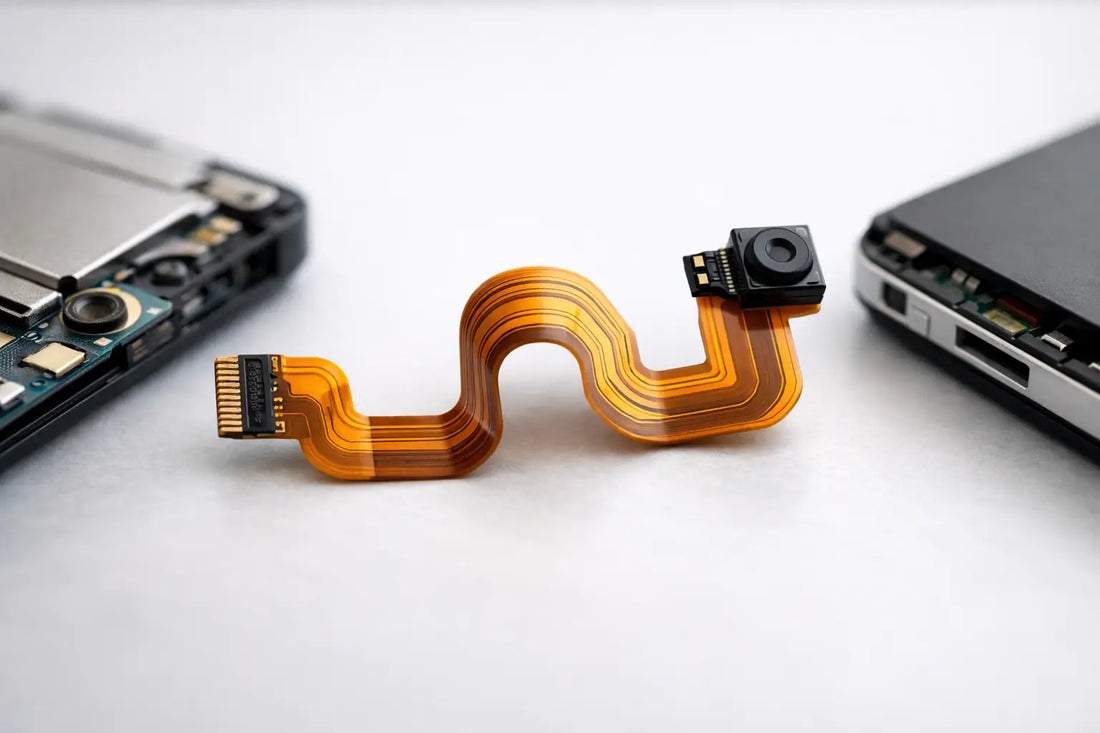

Shaped Flex Cable for Compact Electronics

When a cable path has to bend around a camera module, clear a heat sink and still land accurately on a tight connector pitch, a standard rectangular flex often becomes the weak point. A shaped flex cable is designed around the product geometry from the outset, so routing, fold points and connection areas work with the assembly rather than against it.

For engineers and sourcing teams building compact, high-performance electronics, that difference is not cosmetic. It affects assembly time, mechanical stress, signal integrity and long-term reliability. In products where every millimetre matters, cable shape is part of the design, not a detail to resolve later.

What a shaped flex cable actually changes

A shaped flex cable is a flexible printed interconnect manufactured with a profile tailored to the application. Instead of a simple strip with excess material trimmed by the installer or folded into place as best as possible, the cable is produced with the required outline, branch sections, bend regions and termination positions already defined.

That gives the design team more control over how the cable sits in the enclosure. It can avoid interference with fasteners, housings, batteries, optics or moving parts. It can also support more predictable folding in assemblies where repeated placement accuracy matters.

In practice, the value is usually found in three areas. First, the cable fits the available space with less compromise. Second, the assembly process becomes more repeatable because the part arrives in a form matched to the product. Third, the risk of unnecessary strain falls because the cable is not being forced into a route it was never designed to follow.

Why shaped flex cable matters in modern product design

Electronic systems have become denser, lighter and more functionally integrated. That puts interconnects under pressure. A cable that was acceptable in a roomy enclosure may become a problem in a device with stacked boards, sensor arrays or articulated movement.

This is where shaped flex cable earns its place. It gives designers a way to route power and signals through constrained spaces without introducing bulky harnesses or awkward service loops. In robotics, imaging, portable devices and AI hardware, that can be the difference between a clean architecture and a layout that constantly fights back.

The commercial advantage matters as well. If a cable profile supports faster installation and fewer assembly errors, the gain is not limited to the CAD model. It carries through prototyping, pilot builds and production. Procurement teams tend to value this because a well-defined shaped part can reduce ambiguity at the point of build.

There is a trade-off, of course. A custom shape generally demands more upfront engineering definition than a generic flex. If the product geometry is still changing week by week, locking the cable profile too early can create revision churn. The best results usually come when the mechanical envelope and connector strategy are already reasonably stable.

Design considerations that affect performance

A shaped outline on its own does not guarantee a better cable. Performance depends on how the geometry, copper layout and use case work together.

Bend behaviour is one of the first things to get right. If the cable is expected to fold into position once during assembly, the design freedom is different from an application that flexes repeatedly in use. Dynamic movement needs closer attention to bend radius, copper placement and reinforcement strategy. A cable that performs well in a static installation may not last in a repetitive motion system.

Termination layout is equally important. Connector orientation, pad accessibility and insertion direction all influence whether the shaped part genuinely simplifies assembly. If the profile is optimised for space but makes handling awkward on the line, the gain is limited. This is why cable design should be reviewed as part of the full assembly process rather than as an isolated electrical drawing.

Material selection also deserves proper consideration. Thickness, stiffness and support layers affect how the cable behaves during installation. A thinner construction may help in a restricted space, but it can also make handling more delicate. A stiffer region may improve insertion at the connector, while a more flexible section supports controlled folding elsewhere. There is rarely a single best answer independent of the product.

Where shaped flex cable is most useful

The strongest applications tend to share the same constraints: limited space, precise routing requirements and a low tolerance for installation variation.

Camera and vision systems are a common example. The cable may need to pass around lenses, housings and sensor boards while avoiding strain on fine-pitch terminations. In these assemblies, shape and fold location often have a direct effect on alignment and serviceability.

Robotics is another natural fit. Where moving joints, compact actuators and distributed electronics are involved, interconnect routing becomes part of the machine design. A shaped cable can reduce bulk and support cleaner motion paths, although dynamic applications must be engineered carefully to avoid fatigue issues.

Medical, industrial and portable electronics also benefit when internal volume is restricted and reliability expectations are high. In those sectors, a cable that fits correctly first time is not just neater. It can reduce rework and help maintain consistent build quality across batches.

Standard versus custom shaped flex cable

Not every project needs a fully bespoke part. There are cases where a standardised shaped flex is the fastest and most sensible option, particularly for proven layouts or applications that align closely with existing form factors. This can reduce lead time and simplify procurement.

Custom design becomes more attractive when the enclosure is unique, the connector positions are fixed by other subsystems or the product has demanding electrical and mechanical requirements. For OEMs and development teams, the benefit is tighter alignment between the interconnect and the rest of the hardware.

The real question is not whether custom is better in theory. It is whether the additional engineering yields measurable value in the product. If a standard part requires repeated handling compromises, manual rerouting or excess material folded into the housing, the hidden cost can quickly outweigh the convenience.

This is where a supplier with both standard product capability and bespoke engineering support can make a practical difference. It allows teams to move quickly when a ready-to-order solution fits, while still having a path to a shaped cable that matches exact design intent when the application demands it.

Common mistakes in shaped flex cable selection

One common mistake is treating the cable profile as a late-stage mechanical trim exercise. By that point, critical decisions on connector choice, board placement and fold direction may already be fixed, leaving too little room to optimise the interconnect properly.

Another is underestimating assembly handling. A cable may fit perfectly in the final installed position but still be difficult to place consistently during production. For higher-volume builds, operator interaction matters. Pick-up points, insertion stiffness and orientation cues can all influence yield.

Teams also sometimes assume that tighter packaging always means a better design. In reality, over-constraining the cable can introduce stress and make servicing harder. A small amount of controlled slack in the right place is often preferable to a route that forces the interconnect against sharp transitions or hard edges.

What to ask before you specify one

Before selecting a shaped flex cable, it helps to define how the cable will behave in real use, not just where it needs to sit. Is it static or dynamic? Does it carry high-speed data, low-voltage power or both? How much installation tolerance exists around the connector interfaces? Will the product be assembled by hand, semi-automated equipment or a fully controlled production line?

Those answers shape the right specification. They also make conversations with a manufacturing partner more productive because the cable can be engineered around actual constraints rather than assumptions.

For buyers evaluating suppliers, responsiveness matters almost as much as technical capability. A shaped flex cable sits at the intersection of electrical design, mechanical packaging and manufacturing practicality. The best outcomes usually come from a partner that can engage across all three, especially when prototype learning needs to be carried cleanly into production. That is why engineering-led support remains valuable even when the part itself appears simple on paper.

In advanced electronics, good interconnect design often goes unnoticed because everything fits, folds and performs exactly as intended. That is the point. When a shaped flex cable is specified well, it removes friction from the product rather than adding another component to manage.
