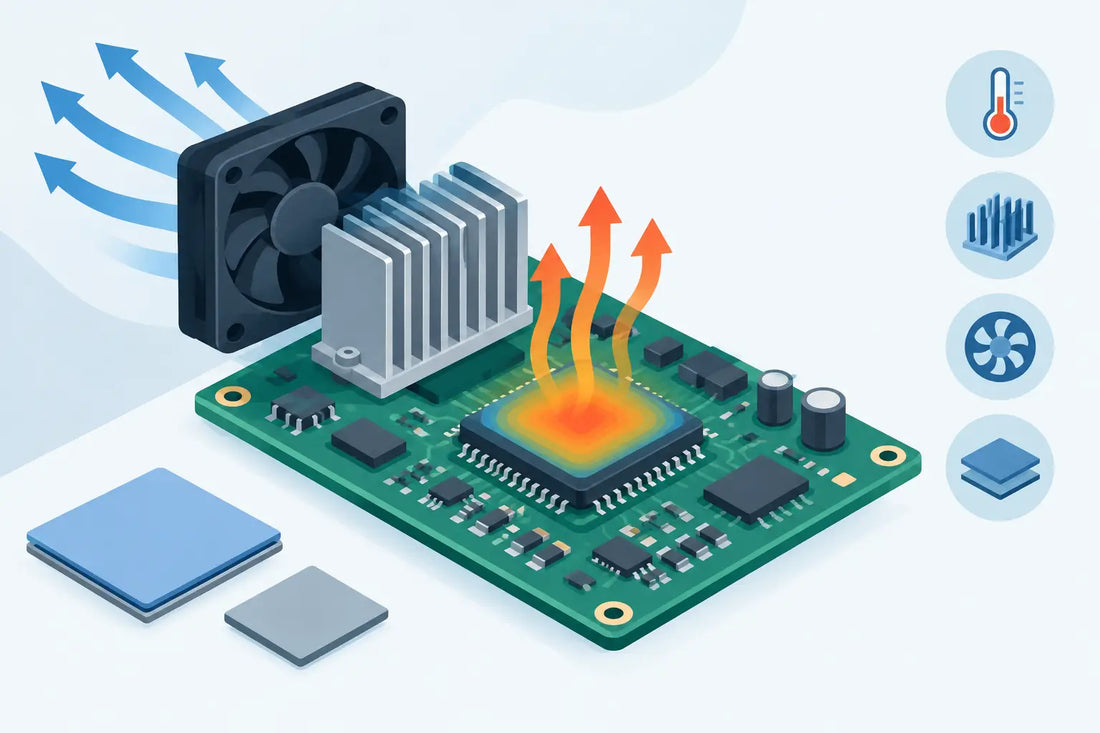

PCB Thermal Management Guide for Designers

A regulator that runs acceptably on an open bench can fail inside a sealed enclosure, beside a processor, after a warm day of continuous operation. This PCB thermal management guide focuses on preventing that outcome at the design stage, when copper, stack-up, component placement and enclosure decisions can still be changed without costly rework.

For advanced electronics, thermal design is not simply about adding a heatsink. It is about creating a controlled path for heat from its source to the surrounding environment while protecting performance, reliability and manufacturability. The right approach depends on power density, duty cycle, ambient temperature, available space, airflow, enclosure material and the sensitivity of nearby components.

PCB thermal management guide: start with the heat budget

Begin with the components that generate or experience the most heat. Power MOSFETs, voltage regulators, LEDs, processors, RF power stages, motor drivers and high-current connectors deserve early attention. Calculate or estimate their dissipation under realistic worst-case load, rather than relying on typical operating figures.

For resistive losses, the starting point is I²R. Switching devices also dissipate energy during transitions, while linear regulators convert the voltage difference between input and output directly into heat. A 12 V-to-5 V linear regulator delivering 1 A, for example, must dispose of roughly 7 W. That is a thermal problem before board layout has even begun.

Map the complete thermal path: junction to package, package to PCB, PCB to enclosure or heatsink, then enclosure to ambient air. Datasheet thermal resistance values can help, but they must be interpreted carefully. A junction-to-ambient figure is measured under specific board and airflow conditions. It is not a universal prediction of operating temperature inside a compact product.

Set a design temperature target below the component's absolute maximum junction temperature. The required margin depends on the application, expected service life and operating environment. Equipment used intermittently in a ventilated laboratory has different constraints from an AI vision system operating continuously in an enclosed industrial housing.

Use the PCB as part of the cooling system

The board is often the first practical heatsink available. Copper planes spread heat laterally, reducing local hot spots and directing energy towards larger board areas, mounting points or chassis interfaces. A well-designed copper strategy can remove the need for a larger mechanical solution, particularly in low- and medium-power assemblies.

Create useful copper area

Connect exposed thermal pads to substantial copper pours wherever the package and circuit function allow it. Internal planes can provide significant heat spreading without consuming valuable outer-layer routing area. Wider tracks reduce resistive heating in high-current paths, but copper width alone is not a complete thermal strategy. Heat needs an uninterrupted route into planes and away from the source.

Increasing copper weight may improve thermal performance, yet it introduces trade-offs. Thicker copper affects etching tolerances, fine-pitch routing, impedance control and manufacturing cost. In many designs, a balanced multilayer stack-up with dedicated planes is more effective than using heavy copper everywhere.

Use thermal vias correctly

Thermal vias transfer heat through the board thickness from an exposed pad or copper island to internal and opposite-side planes. Their performance depends on quantity, drill size, plating thickness, board thickness and the copper area available at each end. A small, tightly spaced array beneath a power package is generally more effective than a few isolated vias.

Via-in-pad can improve thermal transfer and reduce the footprint required, but open vias may wick solder away during assembly. Filled and capped vias solve this issue, although they add process cost. Where standard tented or plugged vias are sufficient, they can offer a more economical result. This is a decision best made alongside the PCB manufacturer and assembly process, not after the layout is released.

Place heat sources with the enclosure in mind

Keep high-dissipation devices away from temperature-sensitive parts such as precision references, crystals, batteries, image sensors and electrolytic capacitors. Avoid concentrating several heat sources in the centre of the board if the perimeter or mounting locations provide a better escape route.

Placement should also reflect airflow. Components placed upstream in a forced-air path receive cooler air than those downstream. In natural convection designs, vertical orientation, vent position and clear air channels can matter as much as small changes in copper area.

Select materials and stack-up for the application

Standard FR-4 suits a large proportion of electronics, but it is not the answer to every thermal challenge. For high-power LED modules, motor controls and compact power conversion, an insulated metal substrate or metal-core PCB can offer a direct route into an aluminium base. The compromise is reduced routing flexibility and more limited multilayer options.

Ceramic substrates can deliver excellent thermal conductivity and dimensional stability, but their cost and processing requirements make them appropriate for specialised applications rather than routine control boards. High thermal conductivity laminates sit between conventional FR-4 and ceramic solutions, offering another option when power density is rising but mechanical constraints rule out a metal-core construction.

Stack-up decisions must also preserve electrical performance. High-speed digital, RF and mixed-signal boards need controlled impedance, clean return paths and isolation between noisy power stages and sensitive signals. Thermal improvements that interrupt reference planes or force poor return-current paths can create signal-integrity problems that are harder to solve than the original heat issue.

Choose mechanical cooling only where it earns its place

Passive cooling is usually the most reliable starting point. Copper spreading, thermal vias, a conductive chassis interface and purposeful enclosure design introduce no moving parts. Thermal interface materials can bridge gaps between a board-mounted component and a housing, but their thickness, compression and long-term stability must be specified properly. A high-conductivity pad is ineffective if the mechanical tolerance leaves a large air gap.

Heatsinks become necessary when passive board and enclosure paths cannot maintain the required junction margin. Their effectiveness depends on surface area, fin orientation and airflow, not simply their size. A heatsink trapped inside a sealed plastic enclosure may offer little benefit unless it is coupled to an external surface.

Forced-air cooling handles higher dissipation but brings noise, dust, fan life and system-level maintenance considerations. It can also create uneven temperatures across the assembly. For outdoor, medical or industrial products where ingress protection and service intervals matter, a conduction-cooled enclosure may be the stronger engineering choice.

Verify temperatures on real hardware

Simulation is valuable early in development, especially when comparing layout concepts or enclosure options. It should not replace measurement. Prototype testing reveals contact resistance, airflow recirculation, component tolerances and nearby heat sources that simplified models may not capture.

Measure at realistic input voltage, load, orientation and ambient temperature. Run long enough to reach thermal equilibrium, then repeat for peak duty cycles and fault-adjacent conditions where appropriate. Thermocouples provide direct point measurements, while thermal imaging quickly exposes unexpected hot spots. When using an infrared camera, account for surface emissivity: shiny copper and metal surfaces can produce misleading readings unless treated or calibrated.

Record both component case temperature and the temperature of nearby critical parts. A power stage may remain within limits while gradually overheating a capacitor or sensor beside it. Reliability is governed by the whole assembly, not the hottest component alone.

Thermal design for flex and compact interconnects

Flex and rigid-flex assemblies introduce a different set of constraints. Their thin construction, adhesive layers and restricted copper area can limit heat spreading compared with a conventional rigid board. Repeated bending also means that added copper or stiffening features must be placed carefully to preserve the required dynamic performance.

Where a flex section carries meaningful current, conductor width, copper thickness, bend radius and termination design need to be assessed together. A wider conductor reduces resistive loss, but may reduce flexibility. In compact AI, robotics and imaging systems, separating heat-generating electronics from sensitive sensors through a purpose-designed flex interconnect can be more effective than forcing every function into one crowded board.

Cocom supports this kind of engineering decision with standard flex products and custom PCB and flexi development for systems where electrical routing, mechanical movement and thermal constraints must work together.

The strongest thermal solution is usually the one considered before the first footprint is fixed. Give heat a deliberate route through the PCB and product enclosure, test it under credible operating conditions, and leave enough margin for the environment your equipment will actually face.
