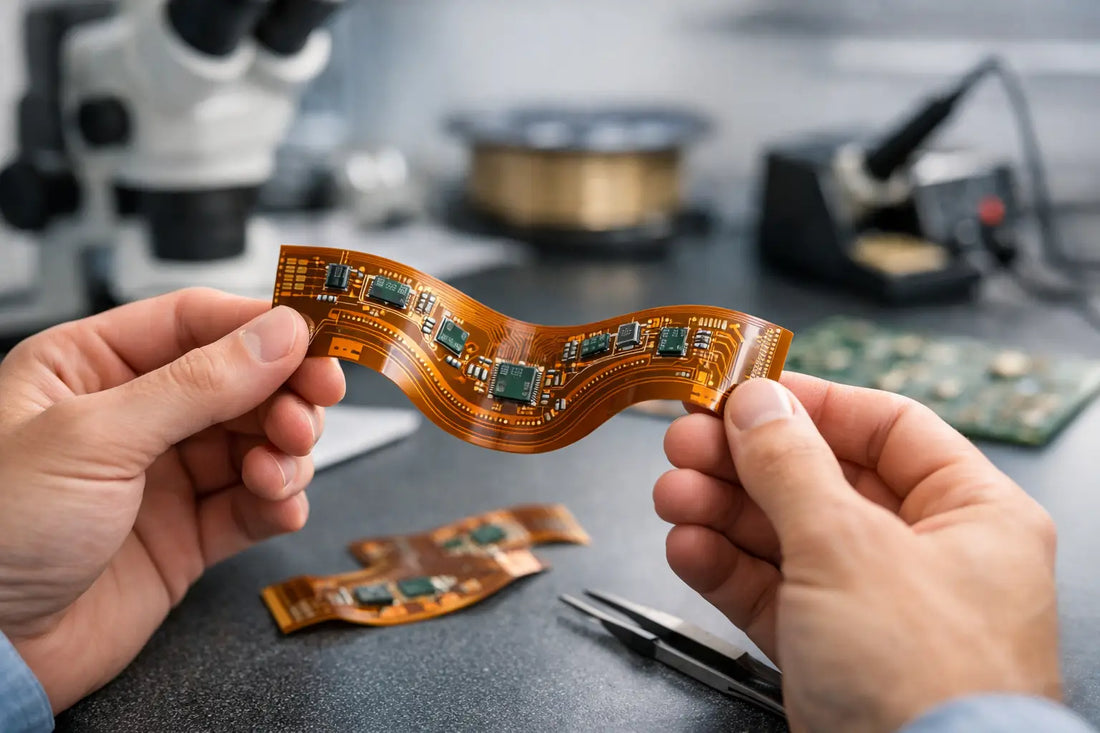

Choosing a Prototype Flex PCB Supplier

A flex circuit that looks straightforward on screen can become difficult very quickly once bend radius, stiffeners, coverlay access, copper weight and assembly tolerances meet a real enclosure. That is why choosing the right prototype flex PCB supplier matters early. The supplier is not only producing a sample - they are shaping whether your design can move cleanly into test, revision and eventual manufacture without unnecessary rework.

For engineering teams building compact electronics, robotics, sensing platforms and AI hardware, flex is rarely a standard purchase. It sits at the point where mechanical constraints, signal integrity and manufacturability all compete for space. A prototype stage is where those tensions show up. If your supplier only quotes against a drawing and ships boards, you may get parts quickly, but not always parts that help you make sound design decisions.

What a prototype flex PCB supplier should really provide

A capable prototype flex PCB supplier does more than offer a fast turnaround. At prototype stage, value comes from engineering judgement. You need feedback on whether the copper layout will tolerate repeated movement, whether the chosen stack-up is realistic for the bend profile, and whether critical features can be produced consistently enough to support later scale-up.

This is especially relevant when designs include fine-pitch interconnects, irregular outlines, constrained routing paths or integration into moving assemblies. In these cases, prototype success is not simply about passing continuity tests. It is about proving that the flex design behaves properly inside the product.

That changes how a buyer should assess suppliers. Price and lead time matter, but they are not enough on their own. The stronger question is whether the supplier can identify risk before the build begins.

Engineering support matters as much as fabrication

The best prototype outcomes usually come from suppliers who understand both design intent and manufacturing limits. Flex PCB work has too many variable interactions to treat fabrication as an isolated transaction. Material choice affects bend life. Pad design influences solder reliability. Adhesive and coverlay decisions can change thickness and flexibility in ways that matter to the end application.

A supplier with practical engineering capability can often spot issues that are easy to miss under schedule pressure. A trace routed too close to a bend zone, a stiffener placed without enough tolerance for assembly, or a stack-up that adds thickness where movement is required can all delay validation.

For product teams, this support is not a luxury. It shortens iteration loops. It can also prevent the common situation where a prototype technically works on the bench but fails once it is installed in the device.

Design for manufacture is not optional in flex

With rigid boards, some design compromises can be absorbed later through process adjustment. Flex gives you less room for that. Repeated bending, tight packaging and unusual shapes leave little margin for poor decisions made upstream.

That is why design for manufacture should be part of the prototype conversation, not something saved for volume production. If the design cannot be built repeatably at low volume, it may become even less stable as requirements tighten. A reliable supplier will challenge assumptions early and explain the trade-offs clearly.

Speed is useful, but only when it serves the programme

Many buyers start with lead time because prototype schedules are compressed. That is understandable. A late flex PCB can hold up enclosure testing, firmware integration and customer demonstrations. But speed by itself can be misleading.

A very fast supplier that produces parts with hidden manufacturability issues may create more delay overall than a supplier who takes slightly longer while checking the design properly. The right pace depends on the project. If you are validating connector fit and routing concept, a rapid build may be enough. If you are proving movement reliability or planning a direct transfer into pilot production, a more rigorous review is usually worth the time.

Good suppliers are transparent here. They explain what can realistically be turned around quickly and what requires additional validation. That honesty is useful because it lets procurement and engineering teams plan around actual risk rather than optimistic assumptions.

Questions worth asking a prototype flex PCB supplier

The quality of a supplier often becomes clear through the questions they can answer without hesitation. Can they advise on dynamic versus static flex use? Do they have a clear view on minimum bend radius for the proposed construction? Can they support shaped flex formats rather than only simple linear designs? Can they discuss stiffeners, shielding, impedance considerations and assembly implications in the same conversation?

You should also ask how prototype builds relate to future production. Some suppliers are strong at one-off samples but less suited to controlled repeat manufacture. Others can support both early prototypes and later supply, which reduces the friction of handing designs from one vendor to another.

That continuity can be a major advantage. When one partner understands the original design intent, revision history and application demands, changes are often managed faster and with fewer misunderstandings.

Prototype quantity is only part of the story

A low minimum order quantity sounds attractive, but prototype support is about more than volume. What matters is whether the supplier treats prototype units as development tools. That means clear communication, revision awareness and a willingness to support design refinement rather than simply dispatch boards.

For complex electronics programmes, that approach can save far more than the cost difference between quotes.

Quality control in prototype flex PCB work

Prototype does not mean lower standards. In fact, quality discipline is often more important at this stage because teams are using the build to make design decisions. If the prototype contains inconsistencies caused by poor process control, it becomes harder to tell whether failures come from the design or the manufacture.

A dependable supplier should be able to explain inspection methods, material controls and how they manage critical tolerances. This is particularly important where the flex circuit interfaces with cameras, sensors, compact connectors or mechanically active parts. Small dimensional variation can create larger system issues.

For advanced applications, consistency matters even in tiny batches. Engineering teams need confidence that what they are testing reflects the intended design, not random process variation.

Why custom capability gives you more options

Off-the-shelf flex products can be the right answer when the application is straightforward and timing is critical. They help teams move quickly and reduce development overhead. But many next-generation electronic systems do not stay within standard formats for long.

As soon as routing paths become application-specific, space envelopes tighten, or the flex has to interact with unique mechanics, custom design capability becomes valuable. A supplier that can support both ready-to-order options and bespoke flex development gives buyers more flexibility across the life of a project.

That hybrid model is especially useful for OEMs and development teams who may begin with a standard part for proof of concept, then move to a tailored design as system requirements mature. It reduces supplier fragmentation and keeps engineering knowledge closer to the programme. That is one reason companies such as Cocom position flex products and custom engineering as part of the same solution set.

What the right supplier relationship looks like

The strongest supplier relationships in this space are collaborative but disciplined. They are built on accurate documentation, responsive technical communication and a shared understanding of the application. You do not need marketing language. You need clear answers, reliable builds and a supplier who takes performance seriously.

In practice, that means the supplier should be comfortable discussing use case, environment, movement profile, assembly method and future demand without turning every conversation into a sales exercise. Flex PCB prototypes sit close to product risk. Buyers need a partner who understands that.

For procurement teams, this also means looking beyond unit price. A cheaper prototype can become expensive if it creates another design spin, misses a mechanical issue or cannot transition into production cleanly. Total programme value is the better measure.

Choosing a prototype flex PCB supplier with confidence

If you are selecting a prototype flex PCB supplier, look for evidence of engineering depth, not only manufacturing capacity. Ask how they handle unusual geometries, tight bends, design revisions and production transfer. Check whether they can engage at the level your project requires, whether that is a quick proof build or a flex design intended for a high-performance system.

The right supplier should improve decision-making, not just deliver boards. When that happens, your prototype stage becomes more than a checkpoint. It becomes a practical step towards a design that is precise, reliable and ready for what comes next.

A good flex prototype should answer questions, remove risk and leave your team with a clearer path forward.
